GM6251 - ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR

Name: GM6251
SKU: GM6251-573068

Gamma

📥 Download Datasheet

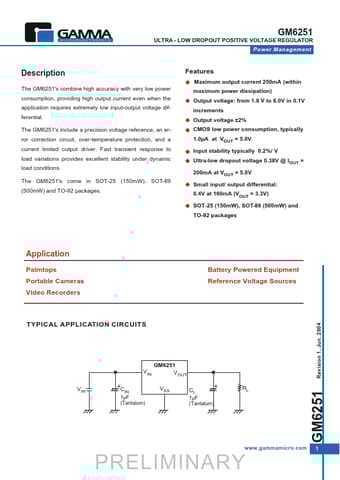

GM6251 Datasheet Preview — Preview of GM6251 PDF

Datasheet Details

Part number	GM6251
Manufacturer	Gamma
File Size	166.21 KB
Description	ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR
Datasheet	GM6251_Gamma.pdf

GM6251 Product details

Description

The GM6251's combine high accuracy with very low power consumption, providing high output current even when the application requires extremely low input-output voltage differential.

Features

Maximum output current 250mA (within maximum power dissipation) Output voltage: from 1.8 V to 6.0V in 0.1V increments Output voltage ±2% CMOS low power consumption, typically 1.0µA at VOUT = 5.0V Input stability typically 0.2%/ V Ultra-low dropout voltage 0.38V @ IOUT = 200mA at VOUT = 5.0V Small input/ output differential: 0.4V at 160mA (VOUT = 3.3V) SOT-25 (150mW), SOT-89 (500mW) and TO-92 packages.
