DB105S - Miniature Glass Passivated Single-Phase Bridge Rectifiers

Product Overview

GOODARK

📥 Download Datasheet

DB105S Miniature Glass Passivated Single-Phase Bridge Rectifiers by GOODARK - Datasheet Preview — Datasheet preview – DB105S

Datasheet Details

Part number	DB105S
Manufacturer	GOODARK
File Size	339.93 KB
Description	Miniature Glass Passivated Single-Phase Bridge Rectifiers
Datasheet	DB105S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB105S, DB101S. Please refer to the document for exact specifications by model.

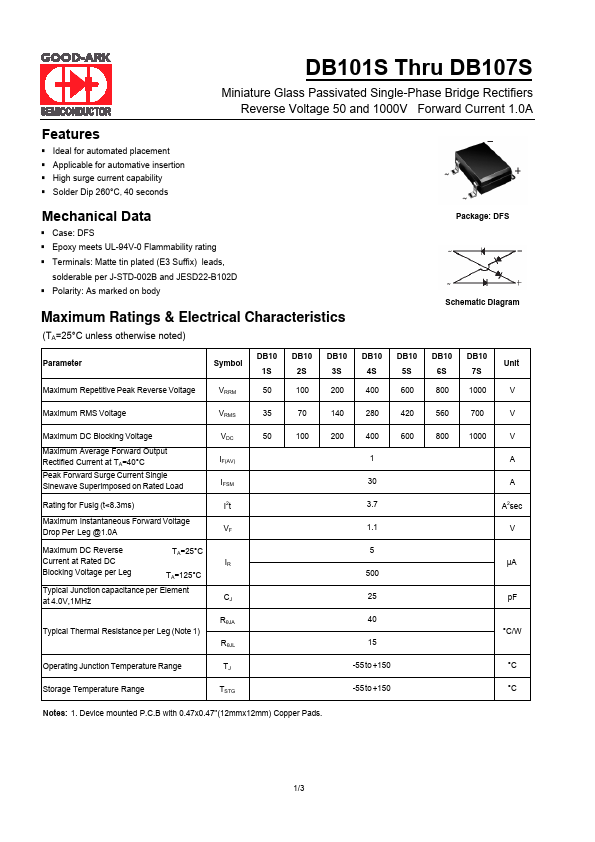

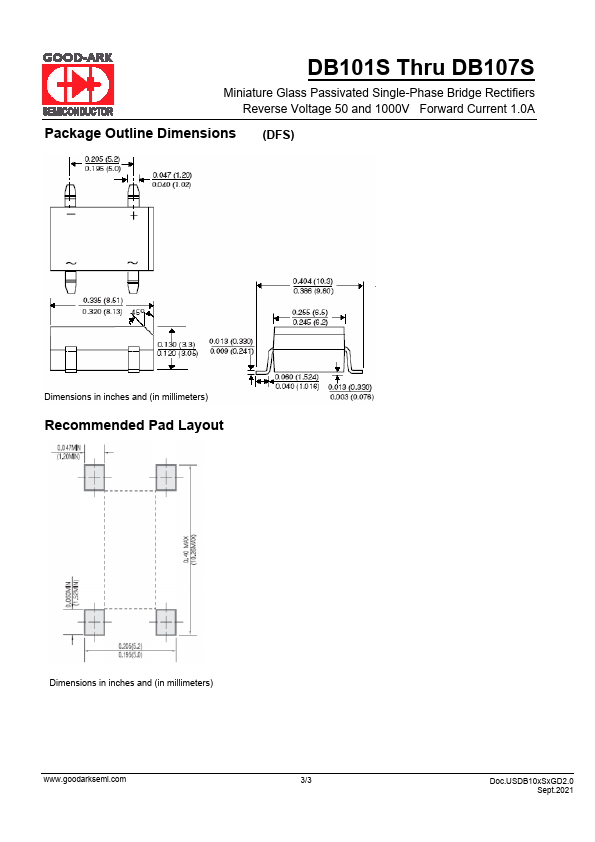

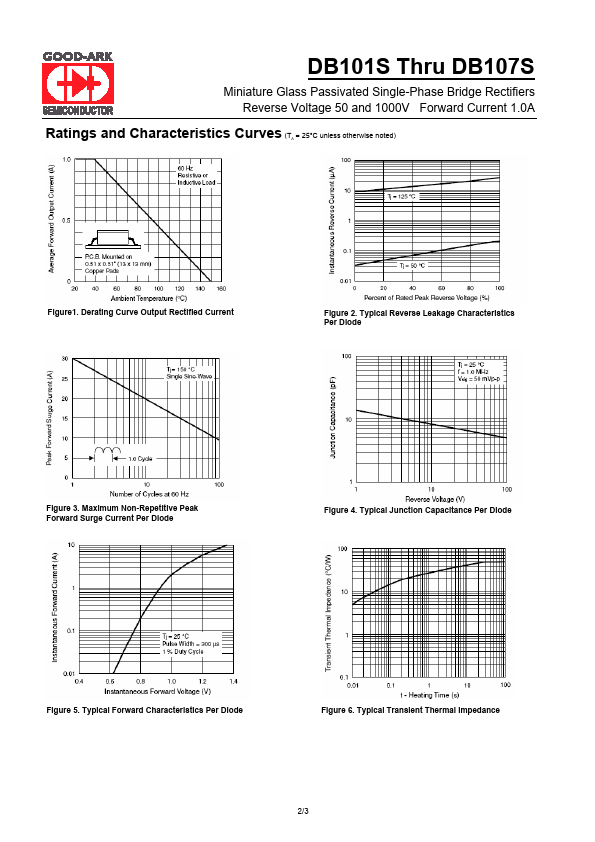

Additional preview pages of the DB105S datasheet.

Product details

Features

Ideal for automated placement.
Applicable for automative insertion.
High surge current capability.
Solder Dip 260°C,40 seconds Mechanical Data.
Case: DFS.
Epoxy meets UL-94V-0 Flammability rating.
Terminals: Matte tin plated (E3 Suffix) leads, solderable per J-STD-002B and JESD22-B102D.
Polarity: As marked on body Maximum Ratings & Electrical Characteristics (TA=25°C unless otherwise noted) Parameter Symbol DB10 1S DB10 2S DB10 3S Maximum Repetit.
