DB106S - Miniature Glass Passivated Single-Phase Bridge Rectifiers

Product Overview

GOODARK

Part number	DB106S
Manufacturer	GOODARK
File Size	339.93 KB
Description	Miniature Glass Passivated Single-Phase Bridge Rectifiers
Datasheet	DB106S Datasheet
Note	This datasheet PDF includes multiple part numbers: DB106S, DB101S. Please refer to the document for exact specifications by model.

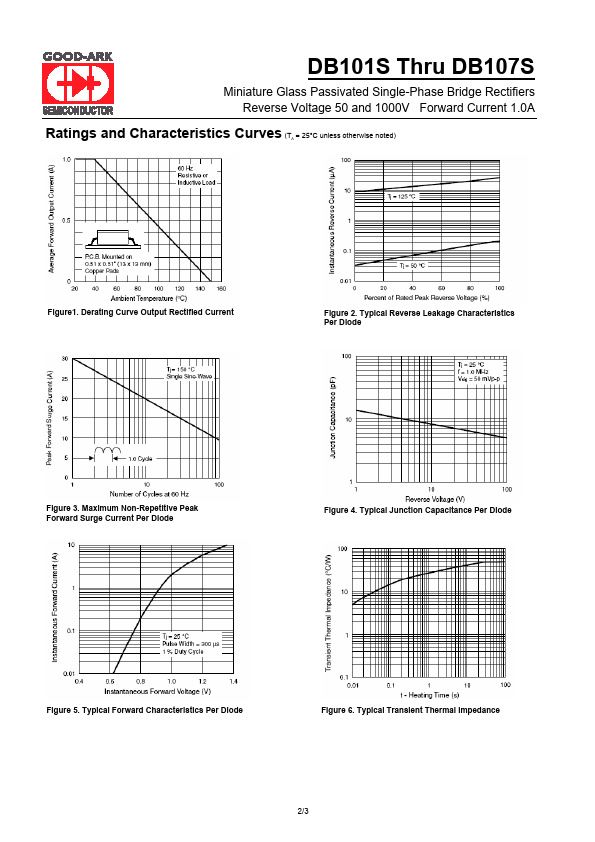

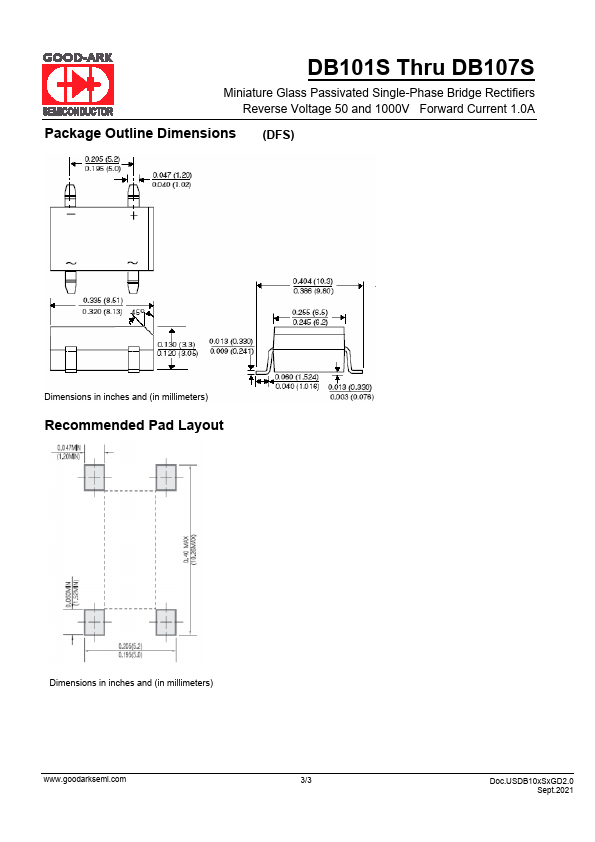

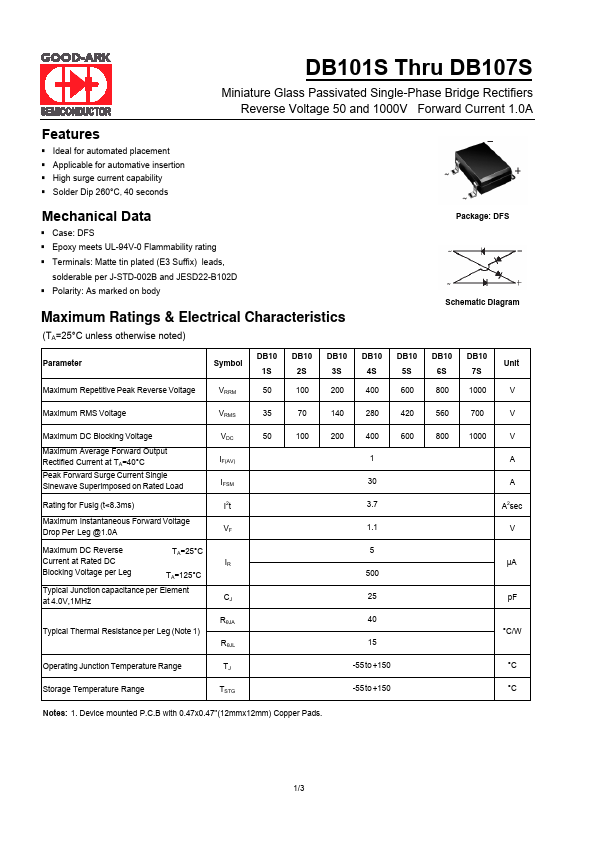

Additional preview pages of the DB106S datasheet.

Ideal for automated placement.
Applicable for automative insertion.
High surge current capability.
Solder Dip 260°C,40 seconds Mechanical Data.
Case: DFS.
Epoxy meets UL-94V-0 Flammability rating.
Terminals: Matte tin plated (E3 Suffix) leads, solderable per J-STD-002B and JESD22-B102D.
Polarity: As marked on body Maximum Ratings & Electrical Characteristics (TA=25°C unless otherwise noted) Parameter Symbol DB10 1S DB10 2S DB10 3S Maximum Repetit.
