MB86626 - KetWave AFE ADSL Analog Front End

Product Overview

Fujitsu Media Devices

Datasheet Details

Part number	MB86626
Manufacturer	Fujitsu Media Devices
File Size	168.21 KB
Description	KetWave AFE ADSL Analog Front End
Datasheet	MB86626 Datasheet

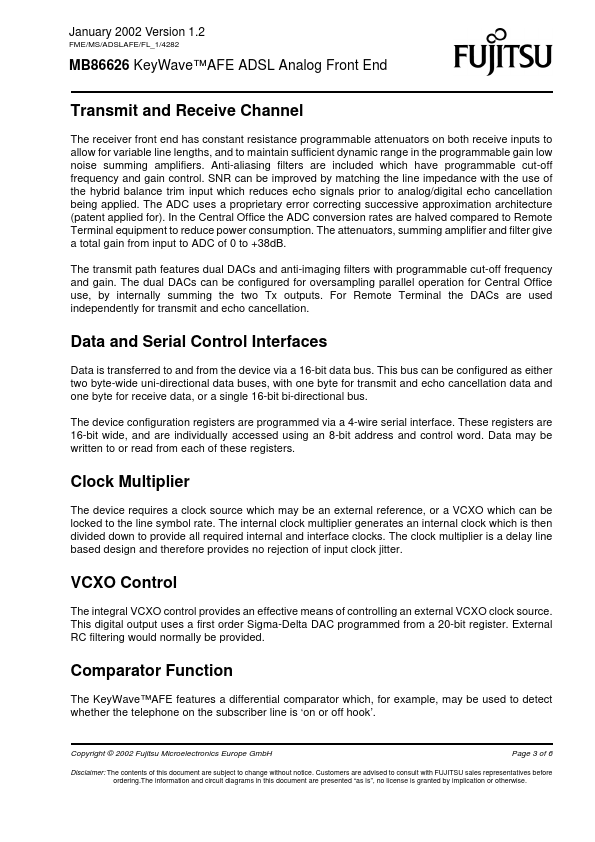

Additional preview pages of the MB86626 datasheet.

Product details

Description

The analog circuitry consists of two 15-bit DACs with associated anti-imaging filters, two 15-bit ADCs with anti-aliasing filters and two programmable gain summing amplifiers (PGA).

Features

Integrates all active circuits except transmit line driver.
Programmable for G. dmt (1 channel) or G. lite (2 channel).
Low power, 3.3V operation - from 235mW/ch (2 channel CO G. lite) to 525mW (RT G. dmt).
Integrated filters and 15-bit A/D & D/A converters.
0 to +38 dB AGC range for receive channel.
Supports analog and digital echo cancellation.
Excellent SFDR and input noise.
0.35µm CMOS technology with Triple Well.
