MB86606A - FAST-20 SCSI Protocol Controller

Fujitsu Media Devices

The MB86606A by Fujitsu Media Devices is a FAST-20 SCSI Protocol Controller. Below is the official datasheet preview.

📥 Download Datasheet

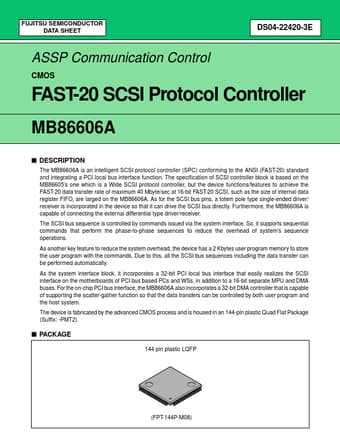

MB86606A FAST-20 SCSI Protocol Controller by Fujitsu Media Devices - Datasheet Preview — Official preview page of the **MB86606A** FAST-20 SCSI Protocol Controller datasheet (Fujitsu Media Devices).

Datasheet Details

Part number	MB86606A
Manufacturer	Fujitsu Media Devices
File Size	605.29 KB
Description	FAST-20 SCSI Protocol Controller
Datasheet	MB86606A_FujitsuMediaDevices.pdf
Additional preview pages of the MB86606A datasheet.

MB86606A Product details

Description

The MB86606A is an intelligent SCSI protocol controller (SPC) conforming to the ANSI (FAST-20) standard and integrating a PCI local bus interface function.

Features

to achieve the FAST-20 data transfer rate of maximum 40 Mbyte/sec at 16-bit FAST-20 SCSI, such as the size of internal data register FIFO, are larged on the MB86606A. As for the SCSI bus pins, a totem pole type single-ended driver/ receiver is incorporated in the device so that it can drive the SCSI bus directly. Furthermore, the MB86606A is capable of connecting the external differential type driver/receiver. The SCSI bus sequence is controlled by commands issued via the system interface. So, i.
