MB86606 - Wide Fast-20 SCSI Protocol Controller

Fujitsu Media Devices

The MB86606 by Fujitsu Media Devices is a Wide Fast-20 SCSI Protocol Controller. Below is the official datasheet preview.

📥 Download Datasheet

MB86606 Wide Fast-20 SCSI Protocol Controller by Fujitsu Media Devices - Datasheet Preview — Official preview page of the **MB86606** Wide Fast-20 SCSI Protocol Controller datasheet (Fujitsu Media Devices).

Datasheet Details

Part number	MB86606
Manufacturer	Fujitsu Media Devices
File Size	372.78 KB
Description	Wide Fast-20 SCSI Protocol Controller
Datasheet	MB86606-FujitsuMediaDevices.pdf
Additional preview pages of the MB86606 datasheet.

MB86606 Product details

Description

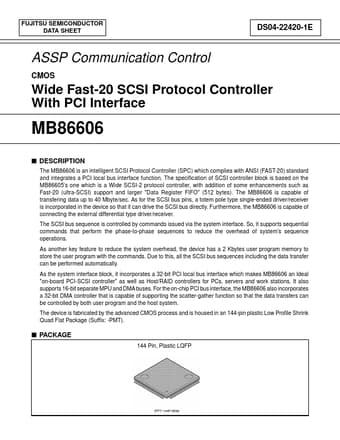

The MB86606 is an intelligent SCSI Protocol Controller (SPC) which complies with ANSI (FAST-20) standard and integrates a PCI local bus interface function.

Features

SCSI Protocol Controller Block:.
Operable as initiator and target.
WIDE and FAST-20 data transfers Synchronous transfer (max. 40 Mbytes/s: Up to 256 offset values can be set. ) Asynchronous transfer (max. 10 Mbytes/s).
512-byte FIFO register for data phase.
Two types (send-only and receive-only) of 32-byte data buffers for message, command, and status phases (MCS Buffers).
On-chip totem pole type SCSI single-ended driver/receiver.
Sup.
