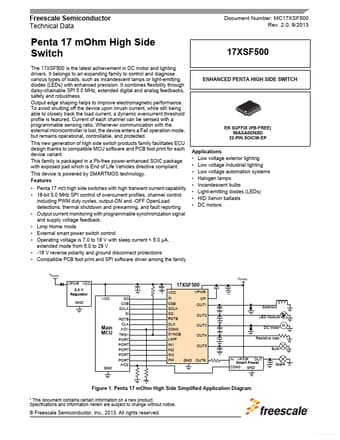

Freescale Semiconductor Technical Data Document Number: MC17XSF500 Rev. 2.0, 9/2013 Penta 17 mOhm High Side Switch The 17XSF500 is the latest achievement in DC motor and lighting drivers. It belongs to an expanding family to control and diagnose various types of loads, such as incandescent lamps or light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy-chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety and robustness. Output edge shaping .

MC17XSF500 Features

* Penta 17 m high side switches with high transient current capability

* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty cycles, output-ON and -OFF OpenLoad detections, thermal shutdown and prewarning, and fault reporting

* Output curre
