MC100ES6039 - 3.3V ECL/PECL/HSTL/LVDS Generation Chip

Freescale Semiconductor

📥 Download Datasheet

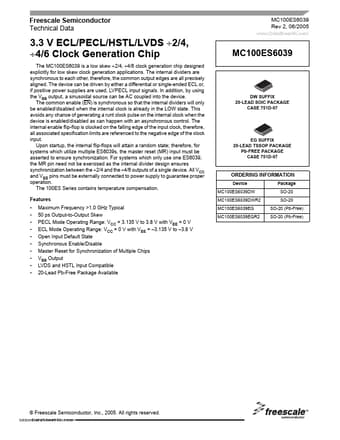

MC100ES6039 Datasheet Preview — Preview of MC100ES6039 PDF

Datasheet Details

Part number	MC100ES6039
Manufacturer	Freescale Semiconductor
File Size	260.61 KB
Description	3.3V ECL/PECL/HSTL/LVDS Generation Chip
Datasheet	MC100ES6039_FreescaleSemiconductor.pdf

MC100ES6039 Product details

Description

Pin CLK(1), CLK(1) EN(1) MR(1) www.DataSheet4U.com Function ECL Diff Clock Inputs ECL Sync Enable ECL Master Reset ECL Reference Output ECL Diff ÷2/4 Outputs ECL Diff ÷4/6 Outputs ECL Freq.Select Input ÷2/4 ECL Freq.Select Input ÷4/6 ECL Positive Supply ECL Negative Supply No Connect 1 VCC 2 EN 3 DIVSELb 4 CLK 5 CLK 6 VBB 7 MR 8 VCC 9 NC 10 DIVSELa VBB Q0, Q1, Q0, Q1 Q2, Q3, Q2, Q3 DIVSELa(1) DIVSELb(1) VCC VEE NC Warning: All VCC and VEE pins must be externally connected to Power

Features

Maximum Frequency >1.0 GHz Typical 50 ps Output-to-Output Skew PECL Mode Operating Range: VCC = 3.135 V to 3.8 V with VEE = 0 V ECL Mode Operating Range: VCC = 0 V with VEE =.
3.135 V to.
3.8 V Open Input Default State Synchronous Enable/Disable Master Reset for Synchronization of Multiple Chips VBB Output LVDS and HSTL Input Compatible 20-Lead Pb-Free Package Available MC100ES603.
