SJ2520 Datasheet - Foxconn

SJ2520 (SJ25 Series) Jumper Connector

SPECIFICATIONS Jumper Connector SJ25 Series 2.54mm [.100”] Pitch Mechanical Contact Retention Force: 0.45kg min. Insertion Force: 420g max. Withdrawal Force: 28g min. Electrical Voltage Rating: 250V Current Rating: 3.0A Dielectric Withstanding Voltage: 750V AC Insulation Resistance: 1000MΩ Physical Housing: Thermoplastic, UL 94V-0 rated Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -40℃ to +105℃ DRAWING ORDERING I N FO R M ATI O N PRODUCT NO.:S J 2 5 2 .

SJ2520 Datasheet (156.03 KB)

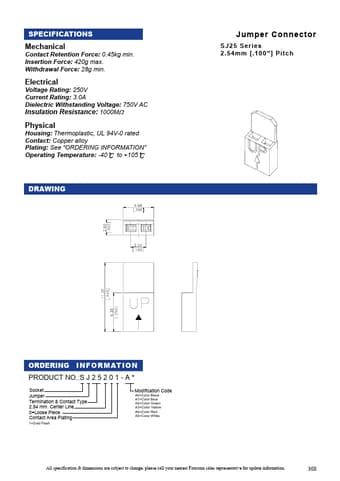

SJ2520 Datasheet Preview — Preview of SJ2520 PDF

Datasheet Details

Part number:

SJ2520

Manufacturer:

Foxconn

File Size:

156.03 KB

Description:

(sj25 series) jumper connector.
