SJ2138 - Low Dropout Voltage Regulator

SeCoS

📥 Download Datasheet

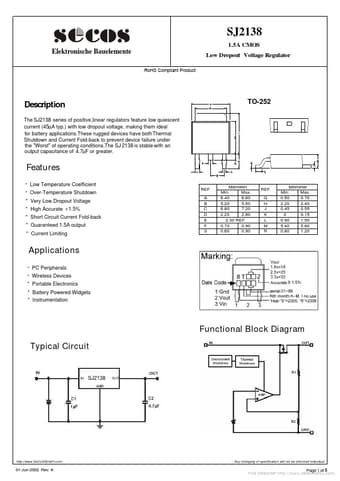

SJ2138 Datasheet Preview — Preview of SJ2138 PDF

Datasheet Details

Part number	SJ2138
Manufacturer	SeCoS
File Size	0.96 MB
Description	Low Dropout Voltage Regulator
Datasheet	SJ2138_SeCoS.pdf

SJ2138 Product details

Description

The SJ2138 series of positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.These rugged devices have both Thermal Shutdown and Current Fold-back to prevent device failure under the "Worst" of operating conditions.The SJ 2138 is stable with an output capacitance of 4.7µF or greater.

Features

Low Temperature Coefficient.
Over-Temperature Shutdown REF. A B C D E F S Millmeter Min. Max. 6.40 6.80 5.20 5.50 6.80 7.20 2.20 2.80 2.30 REF. 0.70 0.90 0.60 0.90 REF. G H J K L M R Millmeter Min. Max. 0.50 0.70 2.20 2.40 0.45 0.55 0 0.15 0.90 1.50 5.40 5.80 0.80 1.20.
Very Low Dropout Voltage.
High Accurate ± 1.5%.
Short Circuit Current Fold-back.
Guaranteed 1.5A output.
Current Limiting.
