SJ2148 - Low Dropout Voltage Regulator

SeCoS

📥 Download Datasheet

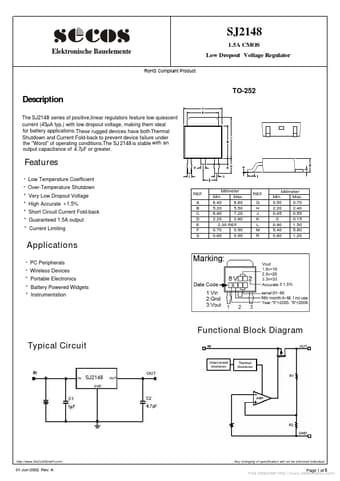

SJ2148 Datasheet Preview — Preview of SJ2148 PDF

Datasheet Details

Part number	SJ2148
Manufacturer	SeCoS
File Size	0.97 MB
Description	Low Dropout Voltage Regulator
Datasheet	SJ2148_SeCoS.pdf

SJ2148 Product details

Description

The SJ2148 series of positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.These rugged devices have both Thermal Shutdown and Current Fold-back to prevent device failure under the "Worst" of operating conditions.The SJ 2148 is stable with an output capacitance of 4.7µF or greater.

Features

Low Temperature Coefficient.
Over-Temperature Shutdown Millmeter Min. Max. 6.40 6.80 5.20 5.50 6.80 7.20 2.20 2.80 2.30 REF. 0.70 0.90 0.60 0.90 Millmeter Min. Max. 0.50 0.70 2.20 2.40 0.45 0.55 0 0.15 0.90 1.50 5.40 5.80 0.80 1.20.
Very Low Dropout Voltage.
High Accurate ± 1.5%.
Short Circuit Current Fold-back.
Guaranteed 1.5A output.
Current Limiting REF. A B C D E F S REF. G H J K L M R.
