FT6236U - Self-Capacitive Touch Panel Controller

FocalTech Systems

📥 Download Datasheet

FT6236U Datasheet Preview — Preview of FT6236U PDF

Datasheet Details

Part number	FT6236U
Manufacturer	FocalTech Systems
File Size	455.21 KB
Description	Self-Capacitive Touch Panel Controller
Datasheet	FT6236U-FocalTechSystems.pdf

FT6236U Product details

Description

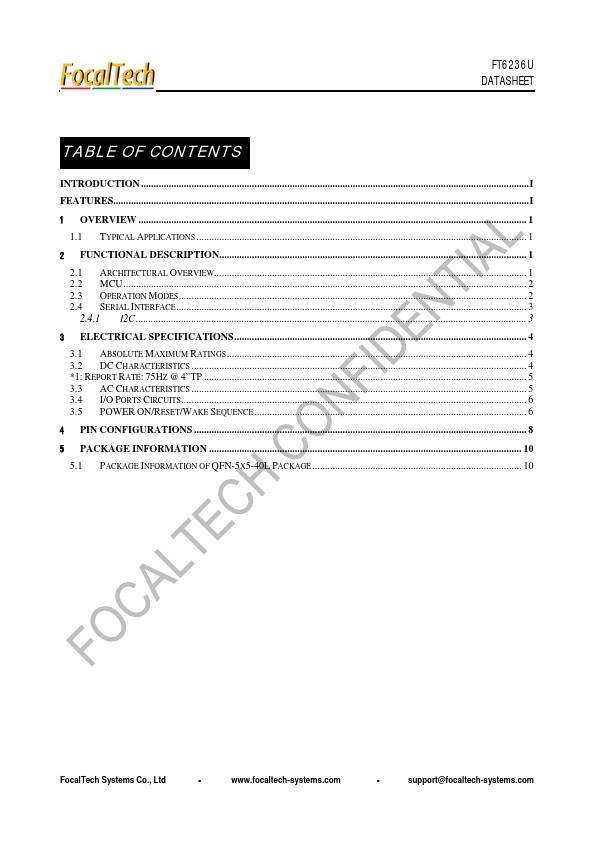

1 2.1 ARCHITECTURAL OVERVIEW 1 2.2 MCU 2 2.3 OPERATION MODES 2 2.4 SERIAL INTERFACE 3 2.4.1 I2C 3 3 ELECTRICAL SPECIFICATIONS 4 3.1 ABSOLUTE MAXIMUM RATINGS 4 3.2 DC CHARACTERISTICS 4 1: REPORT RATE: 75HZ @ 4”TP 5 3.3 AC CHARACTERISTICS 5 3.4 I/O PORTS CIRCUITS 6 3.5 POWER ON/RESET/WAKE SEQUENCE 6 4 PIN CONFIGURATIONS 8 5 PACKAGE INFORMATION 10 5.1 PACKAGE INFORMATION OF QFN-5X5-40L PACKAGE 10 FocalTech Systems Co., Ltd www.focaltech-systems.com support@focaltech-s

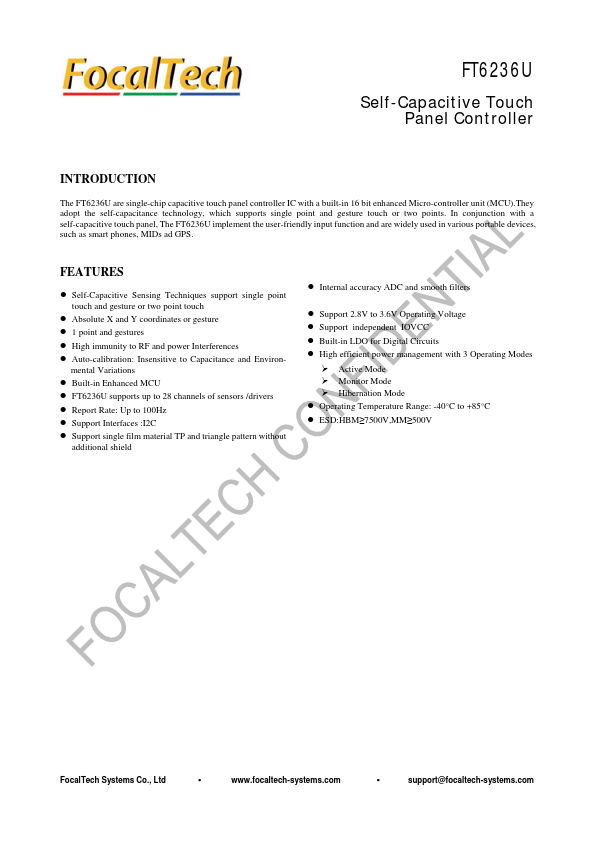

Features

Self-Capacitive Sensing Techniques support single point touch and gesture or two point touch.
Absolute X and Y coordinates or gesture.
1 point and gestures.
High immunity to RF and power Interferences.
Auto-calibration: Insensitive to Capacitance and Environ- mental Variations.
Built-in Enhanced MCU.
FT6236U supports up to 28 channels of sensors /drivers.
Report Rate: Up to 100Hz.
Support Interfaces :I2C.
Support single film material TP and tria.
