FT6306DMB, FT6206 - Self-Capacitive Touch Panel Controller

FocalTech Systems

📥 Download Datasheet

FT6306DMB Datasheet Preview — This datasheet PDF includes multiple part numbers: FT6306DMB, FT6206. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FT6306DMB, FT6206
Manufacturer	FocalTech Systems
File Size	707.43 KB
Description	Self-Capacitive Touch Panel Controller
Datasheet	FT6206-FocalTechSystems.pdf
Note	This datasheet PDF includes multiple part numbers: FT6306DMB, FT6206. Please refer to the document for exact specifications by model.

FT6306DMB Product details

Description

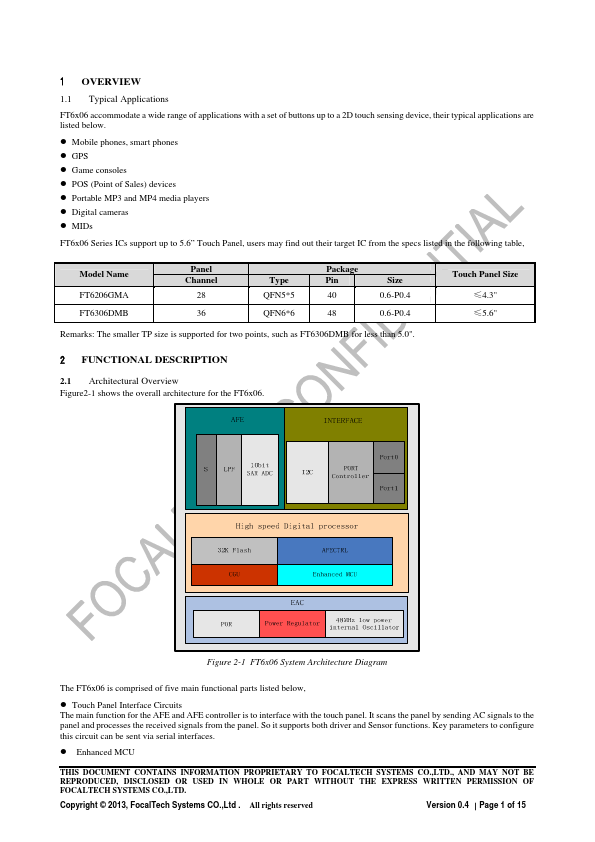

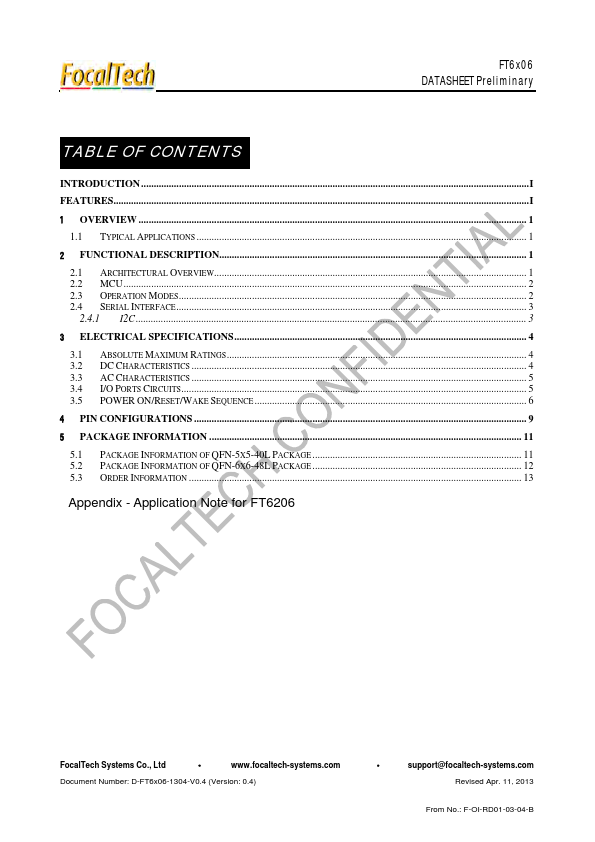

1 2.1 ARCHITECTURAL OVERVIEW 1 2.2 MCU 2 2.3 OPERATION MODES 2 2.4 SERIAL INTERFACE 3 2.4.1 I2C 3 3 ELECTRICAL SPECIFICATIONS 4 3.1 ABSOLUTE MAXIMUM RATINGS 4 3.2 DC CHARACTERISTICS 4 3.3 AC CHARACTERISTICS 5 3.4 I/O PORTS CIRCUITS 5 3.5 POWER ON/RESET/WAKE SEQUENCE 6 4 PIN CONFIGURATIONS 9 5 PACKAGE INFORMATION 11 5.1 PACKAGE INFORMATION OF QFN-5X5-40L PACKAGE 11 5.2 PACKAGE INFORMATION OF QFN-6X6-48L PACKAGE 12 5.3 ORDER INFORMATION 13 Append ix - Application Note f

Features

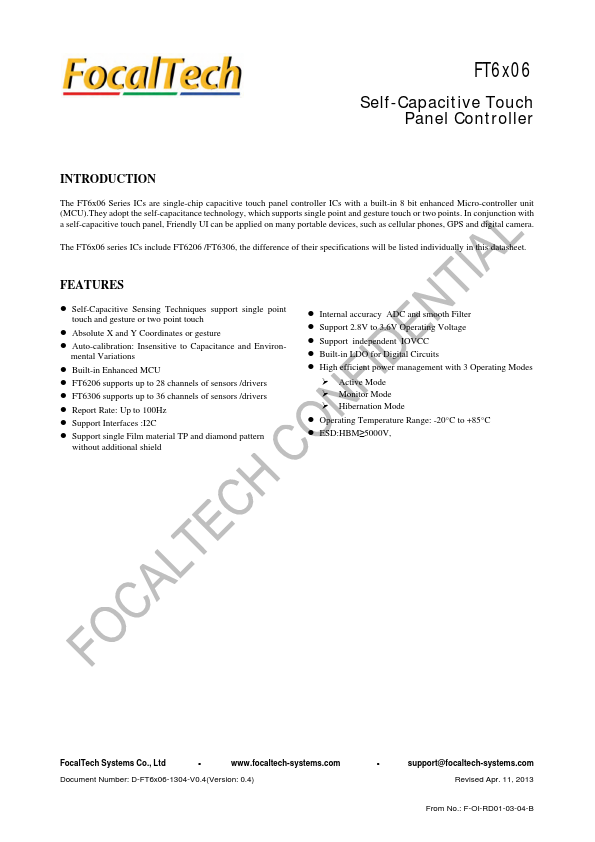

Self-Capacitive Sensing Techniques support single point touch and gesture or two point touch.
Absolute X and Y Coordinates or gesture.
Auto-calibration: Insensitive to Capacitance and Environ- mental Variations.
Built-in Enhanced MCU.
FT6206 supports up to 28 channels of sensors /drivers.
FT6306 supports up to 36 channels of sensors /drivers.
Report Rate: Up to 100Hz.
Support Interfaces :I2C.
Support single Film material TP and diamond pattern withou.
