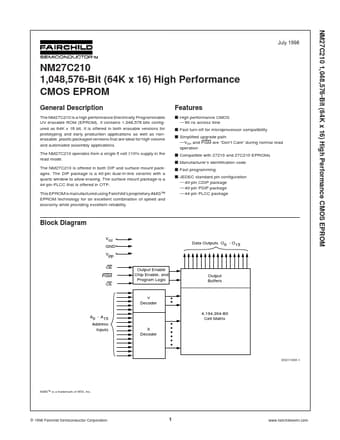

NM27C210 - 1 /048 /576-Bit (64K x 16) High Performance CMOS EPROM

Fairchild

Datasheet Details

The NM27C210 is a high performance Electrically Programmable UV erasable ROM (EPROM).

s High performance CMOS.
90 ns access time s Fast turn-off for microprocessor compatibility s Simplified upgrade path.
VPP and PGM are “Don’t Care” during normal read operation s Compatible with 27210 and 27C210 EPROMs s Manufacturer’s identification code s Fast programming s JEDEC standard pin configuration.
40-pin CDIP package.
40-pin PDIP package.
44-pin PLCC package Block Diagram Vcc GND Vpp OE PGM CE Y Decoder A0 - A15 Address Inputs 4,194,304-Bi.
