NM27C020 - 2 /097 /152-Bit (256K x 8) UV Erasable CMOS EPROM

Fairchild

Datasheet Details

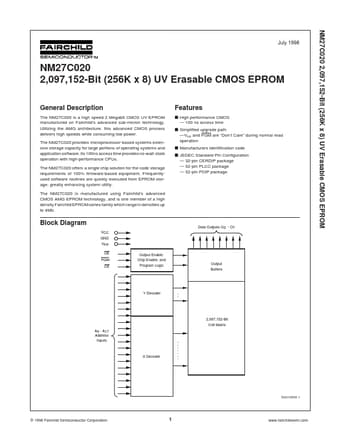

The NM27C020 is a high speed 2 Megabit CMOS UV-EPROM manufactured on Fairchild’s advanced sub-micron technology.

s High performance CMOS.
100 ns access time s Simplified upgrade path.
VPP and PGM are “Don’t Care” during normal read operation s Manufacturers identification code s JEDEC Standard Pin Configuration.
32-pin CERDIP package.
32-pin PLCC package.
32-pin PDIP package Block Diagram VCC GND VPP OE PGM CE Output Enable, Chip Enable, and Program Logic Data Outputs O0 - O7 Output Buffers Y Decoder . . 2,097,152-Bit Cell Matrix A0 - A17 Address Inputs X.
