MM74HC08 - Quad 2-Input AND Gate

Fairchild

The MM74HC08 by Fairchild is a Quad 2-Input AND Gate. Below is the official datasheet preview.

📥 Download Datasheet

MM74HC08 Quad 2-Input AND Gate by Fairchild - Datasheet Preview — Official preview page of the **MM74HC08** Quad 2-Input AND Gate datasheet (Fairchild).

Datasheet Details

Part number	MM74HC08
Manufacturer	Fairchild
File Size	81.33 KB
Description	Quad 2-Input AND Gate
Datasheet	MM74HC08_FairchildSemiconductor.pdf

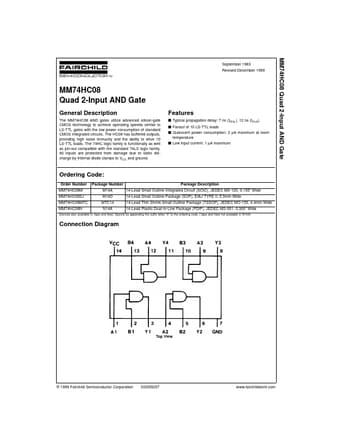

Additional preview pages of the MM74HC08 datasheet.

MM74HC08 Product details

Description

The MM74HC08 AND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.

Features

s Typical propagation delay: 7 ns (tPHL), 12 ns (tPLH) s Fanout of 10 LS-TTL loads s Quiescent power consumption: 2 µA maximum at room temperature s Low input current: 1 µA maximum Ordering Code: Order Number MM74HC08M MM74HC08SJ MM74HC08MTC MM74HC08N Package Number M14A M14D MTC14 N14A Package.
