MM74HC14 - Hex Inverting Schmitt Trigger

Fairchild

The MM74HC14 by Fairchild is a Hex Inverting Schmitt Trigger. Below is the official datasheet preview.

📥 Download Datasheet

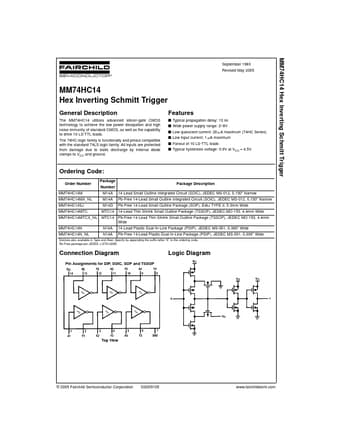

MM74HC14 Hex Inverting Schmitt Trigger by Fairchild - Datasheet Preview — Official preview page of the **MM74HC14** Hex Inverting Schmitt Trigger datasheet (Fairchild).

Datasheet Details

Part number	MM74HC14
Manufacturer	Fairchild
File Size	111.96 KB
Description	Hex Inverting Schmitt Trigger
Datasheet	MM74HC14_FairchildSemiconductor.pdf
Additional preview pages of the MM74HC14 datasheet.

MM74HC14 Product details

Description

The MM74HC14 utilizes advanced silicon-gate CMOS technology to achieve the low power dissipation and high noise immunity of standard CMOS, as well as the capability to drive 10 LS-TTL loads.

Features

s Typical propagation delay: 13 ns s Wide power supply range: 2.
6V s Low quiescent current: 20 µA maximum (74HC Series) s Low input current: 1 µA maximum s Fanout of 10 LS-TTL loads s Typical hysteresis voltage: 0.9V at VCC = 4.5V Ordering Code: Order Number MM74HC14M MM74HC14SJ MM74HC14MTC MM74HC14N Package Number M14A M14D MTC14 N14A Package.
