MM74HC00 - Quad 2-Input NAND Gate

ON Semiconductor

The MM74HC00 by ON Semiconductor is a Quad 2-Input NAND Gate. Below is the official datasheet preview.

📥 Download Datasheet

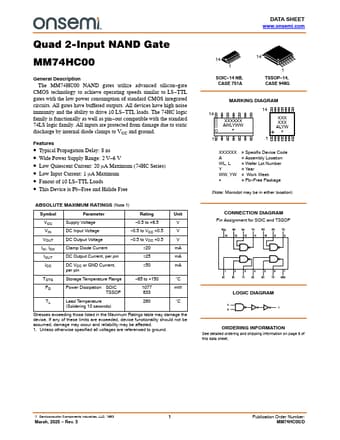

MM74HC00 Quad 2-Input NAND Gate by ON Semiconductor - Datasheet Preview — Official preview page of the **MM74HC00** Quad 2-Input NAND Gate datasheet (ON Semiconductor).

Datasheet Details

Part number	MM74HC00
Manufacturer	ON Semiconductor
File Size	229.66 KB
Description	Quad 2-Input NAND Gate
Datasheet	MM74HC00-ONSemiconductor.pdf
Additional preview pages of the MM74HC00 datasheet.

MM74HC00 Product details

Description

The MM74HC00 NAND gates utilize advanced silicon gate CMOS technology to achieve operating speeds similar to LS TTL gates with the low power consumption of standard CMOS integrated circuits. TTL loads. out compatible with the standard 74LS logic family.

Features

Typical Propagation Delay: 8 ns.
Wide Power Supply Range: 2 V.
6 V.
Low Quiescent Current: 20 mA Maximum (74HC Series).
Low Input Current: 1 mA Maximum.
Fanout of 10 LS.
TTL Loads.
This Device is Pb.
Free and Halide Free.
