RFP30N06LE N-Channel MOSFET

RFP30N06LE Description

S E M I C O N D U C T O R RFP30N06LE, RF1S30N06LE, RF1S30N06LESM 30A, 60V, ESD Rated, Avalanche Rated, Logic Level N-Channel Enhancement-Mode Power M.
The RFP30N06LE, RF1S30N06LE and RF1S30N06LESM are N-Channel power MOSFETs manufactured using the MegaFET process.

RFP30N06LE Features

* 30A, 60V
* rDS(ON) = 0.047Ω
* 2kV ESD Protected
* Temperature Compensating PSPICE Model
* Peak Current vs Pulse Width Curve

RFP30N06LE Applications

* such as switching regulators, switching converters, motor drivers and relay drivers. These transistors can be operated directly from integrated circuits. These transistors incorporate ESD protection and are designed to withstand 2kV (Human Body Model) of ESD. PACKAGE AVAILABILITY PART NUMBER RFP30N0

📥 Download Datasheet

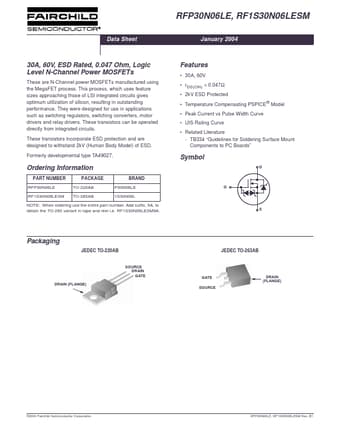

Preview of RFP30N06LE PDF
