MOC8107, MOC8101 - (MOC8101 - MOC8108) Phototransistor Optocouplers

Fairchild Semiconductor

📥 Download Datasheet

MOC8107 Datasheet Preview — This datasheet PDF includes multiple part numbers: MOC8107, MOC8101. Please refer to the document for exact specifications by model.

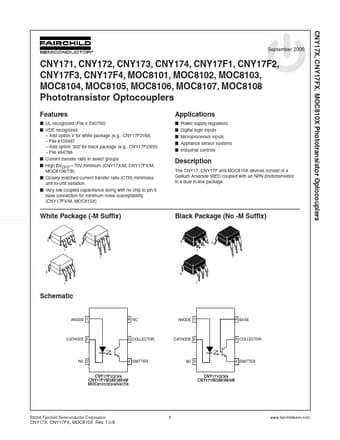

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MOC8107, MOC8101
Manufacturer	Fairchild Semiconductor
File Size	615.05 KB
Description	(MOC8101 - MOC8108) Phototransistor Optocouplers
Datasheet	MOC8101_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MOC8107, MOC8101. Please refer to the document for exact specifications by model.

MOC8107 Product details

Description

The CNY17, CNY17F and MOC810X devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor in a dual in-line package.

Features

UL recognized (File # E90700).
VDE recognized.
Add option V for white package (e. g. , CNY17F2VM).
File #102497.
Add option ‘300’ for black package (e. g. , CNY17F2300).
File #94766.
Current transfer ratio in select groups.
High BVCEO.
70V minimum (CNY17X/M, CNY17FX/M, MOC8106/7/8).
Closely matched current transfer ratio (CTR) minimizes unit-to-unit variation.
Very low coupled capacitance along with no chip to pin 6 base conn.
