ISL9R18120G2 - 18A 1200V Stealth Diode

Fairchild Semiconductor

📥 Download Datasheet

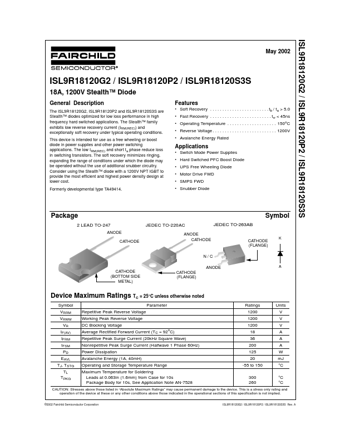

ISL9R18120G2 Datasheet Preview — Preview of ISL9R18120G2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISL9R18120G2
Manufacturer	Fairchild Semiconductor
File Size	161.55 KB
Description	18A 1200V Stealth Diode
Datasheet	ISL9R18120G2_FairchildSemiconductor.pdf

ISL9R18120G2 Product details

Description

The ISL9R18120G2, ISL9R18120P2 and ISL9R18120S3S are Stealth™ diodes optimized for low loss performance in high frequency hard switched applications.

Features

Soft Recovery.
. . . . tb / ta > 5.0.
Fast Recovery.
trr < 45ns.
Operating Temperature.
150oC.
Reverse Voltage.
. 1200V.
Avalanche Energy Rated.
