ISL9R1560P2 - 15A 600V Stealth Diode

Name: ISL9R1560P2
SKU: ISL9R1560P2-253711

Fairchild Semiconductor

📥 Download Datasheet

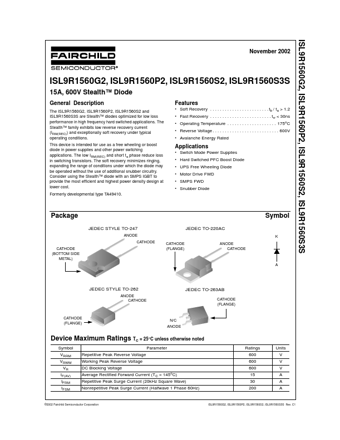

ISL9R1560P2 Datasheet Preview — Preview of ISL9R1560P2 PDF

Datasheet Details

Part number	ISL9R1560P2
Manufacturer	Fairchild Semiconductor
File Size	167.09 KB
Description	15A 600V Stealth Diode
Datasheet	ISL9R1560P2_FairchildSemiconductor.pdf

ISL9R1560P2 Product details

Description

The ISL9R1560G2, ISL9R1560P2, ISL9R1560S2 and ISL9R1560S3S are Stealth™ diodes optimized for low loss performance in high frequency hard switched applications.

Features

Soft Recovery.
. . . . tb / ta > 1.2.
Fast Recovery.
trr < 30ns.
Operating Temperature.
175oC.
Reverse Voltage.
. . 600V.
Avalanche Energy Rated.
