ISL9000A - Dual LDO

Renesas

📥 Download Datasheet

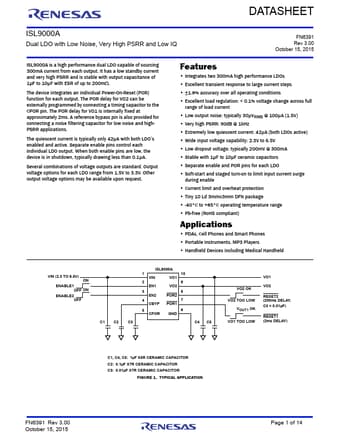

ISL9000A Datasheet Preview — Preview of ISL9000A PDF

Datasheet Details

Part number	ISL9000A
Manufacturer	Renesas
File Size	649.67 KB
Description	Dual LDO
Datasheet	ISL9000A-Renesas.pdf

ISL9000A Product details

Description

PIN NUMBER 1 PIN NAME VIN 2 EN1 3 EN2 4 CBYP 5 CPOR 6 GND 7 POR1 8 POR2 9 VO2 10 VO1 TYPE DESCRIPTION Analog I/O Supply Voltage/LDO Input: Connect a 1µF, X5R ceramic capacitor to GND.Low Voltage Compatible LDO-1 Enable.CMOS Input Low Voltage Compatible LDO-2 Enable.CMOS Input Analog I/O Reference Bypass Capacitor Pin: Optionally connect capacitor of value 0.01µF to 1µF between this pin and GND to tune in the desired noise and PSRR performance.Analog I/O POR2 De

Features

Integrates two 300mA high performance LDOs.
Excellent transient response to large current steps.
±1.8% accuracy over all operating conditions.
Excellent load regulation: < 0.1% voltage change across full range of load current.
Low output noise: typically 30µVRMS @ 100µA (1.5V).
Very high PSRR: 90dB @ 1kHz.
Extremely low quiescent current: 42µA (both LDOs active).
Wide input voltage capability: 2.3V to 6.5V.
Low dro.
