IRFW620A, IRFI620A Power MOSFET

IRFW620A Description

Advanced Power MOSFET IRFW/I620A .

IRFW620A Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µA (Max. ) @ VDS = 200V Low RDS(ON) : 0.626 Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Chara

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFW620A, IRFI620A. Please refer to the document for exact specifications by model.

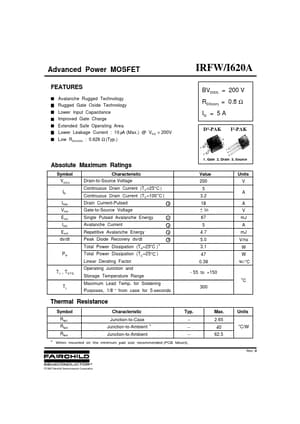

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFW620A, IRFI620A
Manufacturer
Fairchild Semiconductor
File Size
259.04 KB
Datasheet
IRFI620A-FairchildSemiconductor.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFW620A, IRFI620A.
Please refer to the document for exact specifications by model.
