IRFWZ24A, IRFIZ24A Power MOSFET

IRFWZ24A Description

Advanced Power MOSFET IRFW/IZ24A .

IRFWZ24A Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area 175¡ ÉOperating Temperature Lower Leakage Current : 10 µA (Max. ) @ VDS = 60V Lower RDS(ON) : 0.050 Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFWZ24A, IRFIZ24A. Please refer to the document for exact specifications by model.

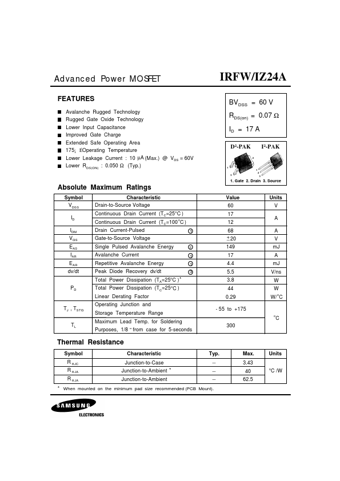

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFWZ24A, IRFIZ24A
Manufacturer
Samsung
File Size
208.25 KB
Datasheet
IRFIZ24A-Samsung.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFWZ24A, IRFIZ24A.
Please refer to the document for exact specifications by model.
