IRFW610B - N-Channel MOSFET

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

Features

  • 3.3A, 200V, RDS(on) = 1.5Ω @VGS = 10 V Low gate charge ( typical 7.2 nC) Low Crss ( typical 6.8 pF) Fast switching 100% avalanche tested Improved dv/dt capability D D !.
  • ◀ ▲.
  • G S D2-PAK IRFW Series G D S I2-PAK IRFI Series G! ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Cont.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

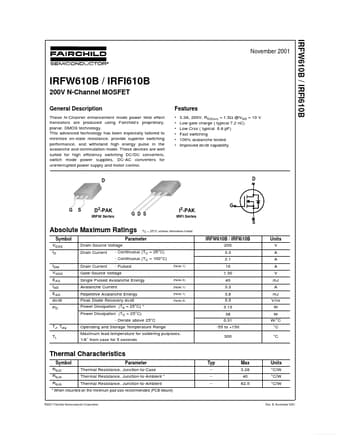

IRFW610B / IRFI610B November 2001 IRFW610B / IRFI610B 200V N-Channel MOSFET General Description These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supplies, DC-AC converters for uninterrupted power supply and motor control. Features • • • • • • 3.3A, 200V, RDS(on) = 1.5Ω @VGS = 10 V Low gate charge ( typical 7.2 nC) Low Crss ( typical 6.
