FPF2143, FPF2140 - Full Function Load Switch

Fairchild Semiconductor

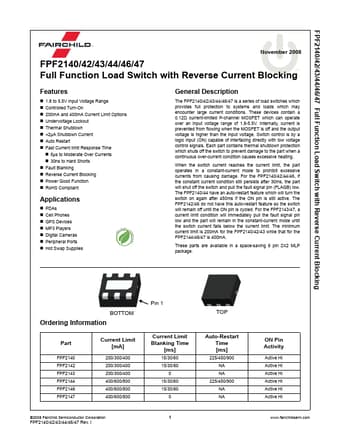

FPF2143 Datasheet Preview — This datasheet PDF includes multiple part numbers: FPF2143, FPF2140. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FPF2143, FPF2140
Manufacturer	Fairchild Semiconductor
File Size	868.56 KB
Description	Full Function Load Switch
Datasheet	FPF2140-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FPF2143, FPF2140. Please refer to the document for exact specifications by model.

FPF2143 Product details

Description

The FPF2140/42/43/44/46/47 is a series of load switches which provides full protection to systems and loads which may encounter large current conditions.

Features

1.8 to 5.5V Input Voltage Range.
Controlled Turn-On.
200mA and 400mA Current Limit Options.
Undervoltage Lockout.
Thermal Shutdown.
