FDMF3039 - Smart Power Stage (SPS) Module

Name: FDMF3039
SKU: FDMF3039-1246254

Fairchild Semiconductor

📥 Download Datasheet

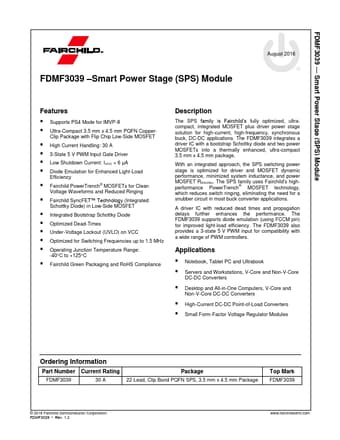

FDMF3039 Datasheet Preview — Preview of FDMF3039 PDF

Datasheet Details

Part number	FDMF3039
Manufacturer	Fairchild Semiconductor
File Size	2.04 MB
Description	Smart Power Stage (SPS) Module
Datasheet	FDMF3039-FairchildSemiconductor.pdf

FDMF3039 Product details

Description

The SPS family is Fairchild’s fully optimized, ultracompact, integrated MOSFET plus driver power stage solution for high-current, high-frequency, sync

Features

Supports PS4 Mode for IMVP-8.
Ultra-Compact 3.5 mm x 4.5 mm PQFN Copper- Clip Package with Flip Chip Low-Side MOSFET.
High Current Handling: 30 A.
3-State 5 V PWM Input Gate Driver.
Low Shutdown Current: IVCC < 6 µA.
Diode Emulation for Enhanced Light-Load Efficiency.
Fairchild PowerTrench® MOSFETs for Clean Voltage Waveforms and Reduced Ringing.
Fairchild SyncFET™ Technology (Integrated Schottky Diode) in Low-Side MOSFET.
Integrated Bootstrap Schott.
