FDMF5821DC - Smart Power Stage (SPS) Module

Features

  • Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET and Dual Cool Architecture.
  • High Current Handling: 60 A.
  • 3-State 5 V PWM Input Gate Driver.
  • Dynamic Resistance Mode for Low-Side Drive (LDRV) Slows Low-Side MOSFET during Negative Inductor Current Switching.
  • Auto DCM (Low-Side Gate Turn Off) Using ZCD# Input.
  • Thermal Monitor for Module Temperature Reporting.
  • Programmable Thermal Shutdown (P_THDN).
  • HS-Short Detect Fault# / Sh.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDMF5821DC SPS ON Semiconductor
FDMF5821 Smart Power Stage (SPS) Module ON Semiconductor
FDMF5833 Smart Power Stage (SPS) Module ON Semiconductor
FDMF5839 Smart Power Stage (SPS) Module ON Semiconductor
FDMF2011 High Performance 100V Smart Power Stage Module ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
FDMF5820DC Smart Power-Stage
FDMF5823DC Smart Power Stage (SPS) Module
FDMF5826DC Smart Power Stage (SPS) Module
FDMF3030 DrMOS
FDMF3035 Smart Power Stage - SPS

Full PDF Text Transcription

Click to expand full text

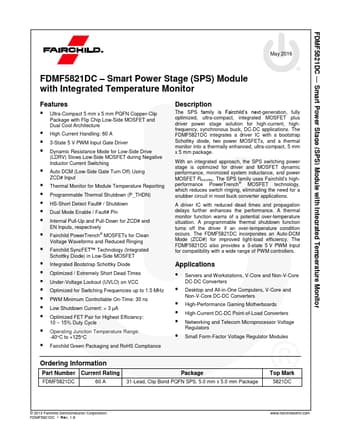

FDMF5821DC — Smart Power Stage (SPS) Module with Integrated Temperature Monitor May 2016 FDMF5821DC – Smart Power Stage (SPS) Module with Integrated Temperature Monitor Features  Ultra-Compact 5 mm x 5 mm PQFN Copper-Clip Package with Flip Chip Low-Side MOSFET and Dual Cool Architecture  High Current Handling: 60 A  3-State 5 V PWM Input Gate Driver  Dynamic Resistance Mode for Low-Side Drive (LDRV) Slows Low-Side MOSFET during Negative Inductor Current Switching  Auto DCM (Low-Side Gate Turn Off) Using ZCD# Input  Thermal Monitor for Module Temperature Reporting  Programmable Thermal Shutdown (P_THDN)  HS-Short Detect Fault# / Shutdown  Dual Mode Enable / Fault# Pin  Internal Pull-Up and Pull-Down for ZCD# and EN Inputs, respectively  Fairchild PowerTrench® MOSFETs for Clean
