FAN7031 2W Stereo Power Amplifier

FAN7031 Description

www.fairchildsemi.com FAN7031 2W Stereo Power Amplifier with Four Selectable Gain Setting and Headphone Drive .
The FAN7031 is a dual fully differential power amplifier in a 20-pin TSSOP-EP thermally enhanced package.

FAN7031 Features

* 1.85WRMS and 2.45WRMS Power Per Each Channel Into 4Ω Load With Less Than 1% and 10% THD+N, Respectively
* Selectable Gain Via Internal Gain Control Circuit Which Eliminates External Gain Setting Resistors : 6dB, 10.3dB, 15.6dB, 21.6dB(Select)
* Low Quiescent Current : Typic

FAN7031 Applications

* the FAN7031 provides shutdown function. Setting the shutdown pin to ground level, the FAN7031 falls into shutdown mode and consumes less than 4µA over all supply voltage range, 2.7V to 5.5V. Two gain setting pins(G0 and G1) control the gain of the FAN7031. The gain is selectable to 6dB, 10dB, 15.6d

📥 Download Datasheet

Preview of FAN7031 PDF

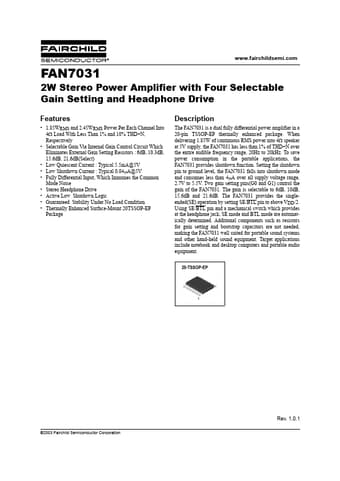

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN7031
Manufacturer
Fairchild Semiconductor
File Size
475.94 KB
Datasheet
FAN7031_FairchildSemiconductor.pdf
Description
2W Stereo Power Amplifier
