FAN7005 200mW Stereo Power Amplifier

FAN7005 Description

www.fairchildsemi.com FAN7005 200mW Stereo Power Amplifier with Shutdown .
The FAN7005 is a dual, fully differential audio power amplifier delivering 200mW(typ.

FAN7005 Features

* 200mW and 300mW Power Per Each Channel into 8Ω Load with Less Than 0.3% and 10% THD+N, Respectively
* Low Shutdown Current : 0.1µA(Typ. )
* No Bootstrap Capacitors or Snubber Circuits are Necessary
* Stable Unity-Gain
* Guaranteed Stability Under No Load Cond

FAN7005 Applications

* the FAN7005 provides a shutdown capability. In shutdown condition, current consumption is reduced to less than 2µA. The FAN7005 is designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the additional snubber circ

📥 Download Datasheet

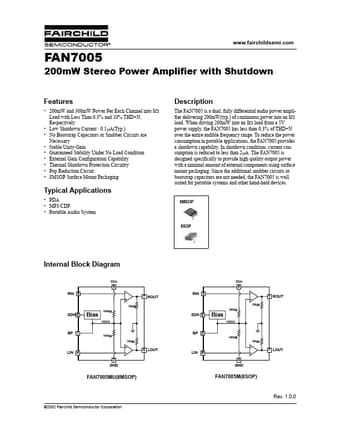

Preview of FAN7005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FAN7005
Manufacturer
Fairchild Semiconductor
File Size
495.87 KB
Datasheet
FAN7005_FairchildSemiconductor.pdf
Description
200mW Stereo Power Amplifier
