EMZB08P03H - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Product Overview

📥 Download Datasheet

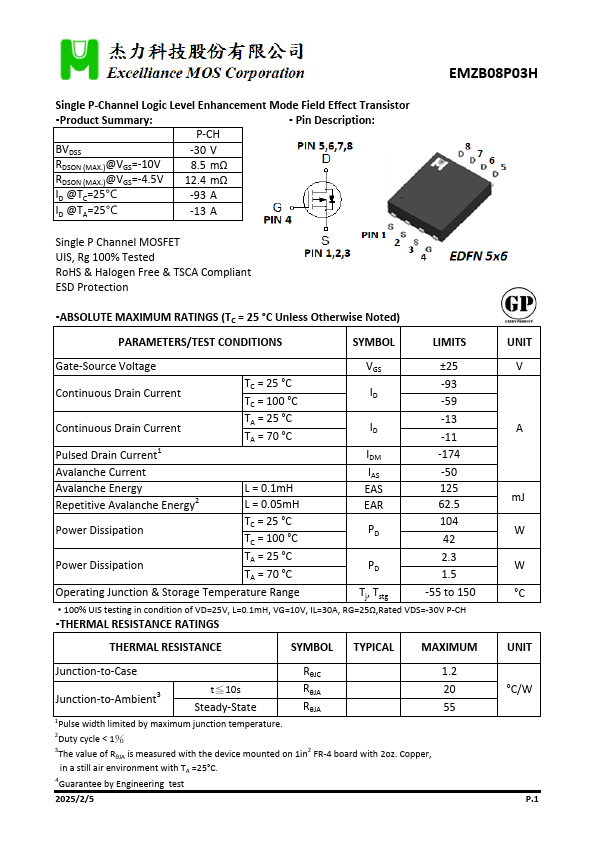

Datasheet preview – EMZB08P03H

Datasheet Details

Part number EMZB08P03H
Manufacturer Excelliance MOS
File Size 364.15 KB
Description P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMZB08P03H Datasheet

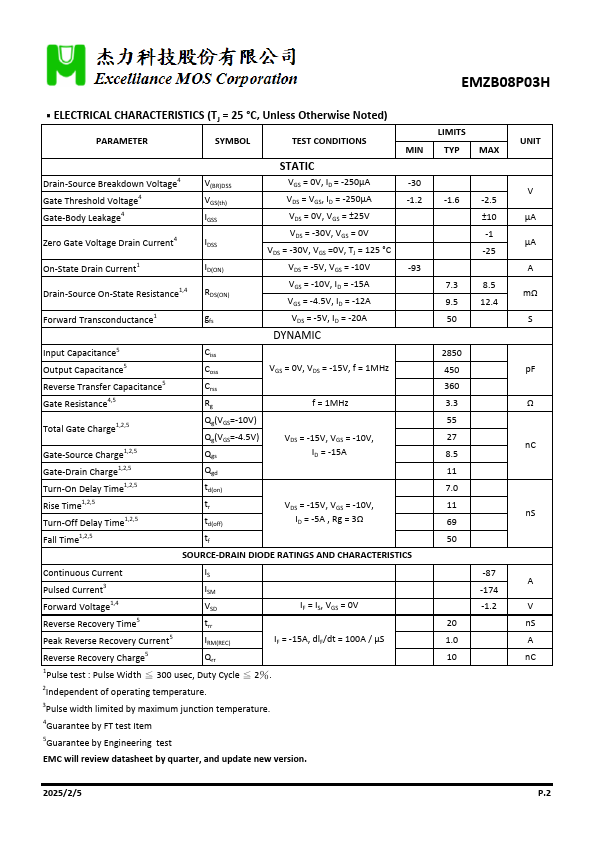

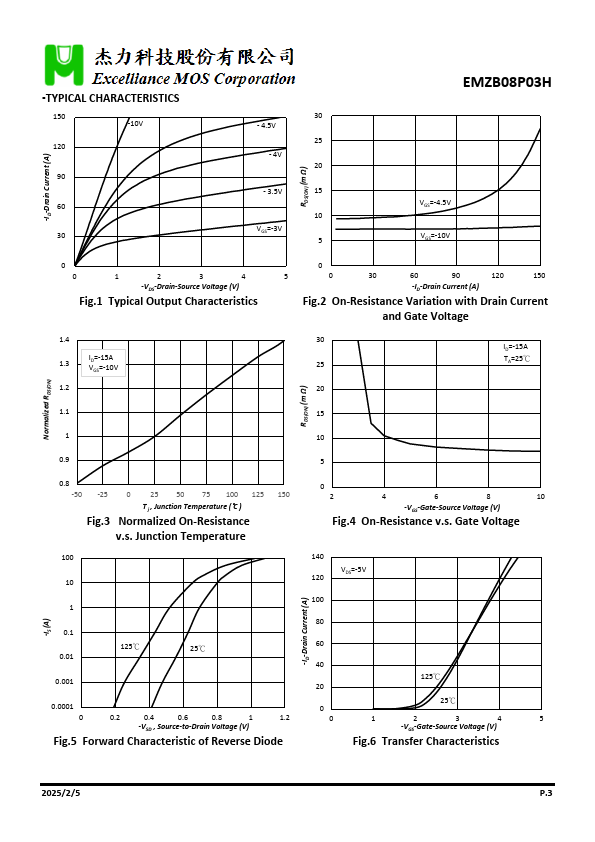

Additional preview pages of the EMZB08P03H datasheet.

Product details

Description

P-CH BVDSS RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TC=25℃ -30 V 8.5 mΩ 12.4 mΩ -93 A ID @TA=25℃ -13 A Single P Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ESD Protection ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±25 Continuous Drain Current TC = 25 °C TC = 100 °C ID -93 -59 Continuous Drain Current TA = 25 °C TA = 70 °C ID -13 -11 Pulsed Drain Curre
