EMB09P03A - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Excelliance MOS

Datasheet Details

Part number	EMB09P03A
Manufacturer	Excelliance MOS
File Size	386.22 KB
Description	P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	EMB09P03A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
EMB09P03A	P-Channel 30V MOSFET	VBsemi
EMB10	PNP Digital Transistors	Rohm
EMB10FHA	PNP -100mA -50V Complex Digital Transistors	ROHM
EMB11	Dual Digital Transistors	Rohm
EMB11	Dual Digital Transistors	JCET

Other Datasheets by Excelliance MOS

Part Number	Description
EMB09P03H	P-Channel Logic Level Enhancement Mode Field Effect Transistor
EMB09P03V	P-Channel Logic Level Enhancement Mode Field Effect Transistor
EMB09A03HP	N-Channel Logic Level Enhancement Mode Field Effect Transistor
EMB09A03VP	N-Channel Logic Level Enhancement Mode Field Effect Transistor
EMB09A3HP	MOSFET

Full PDF Text Transcription

Click to expand full text

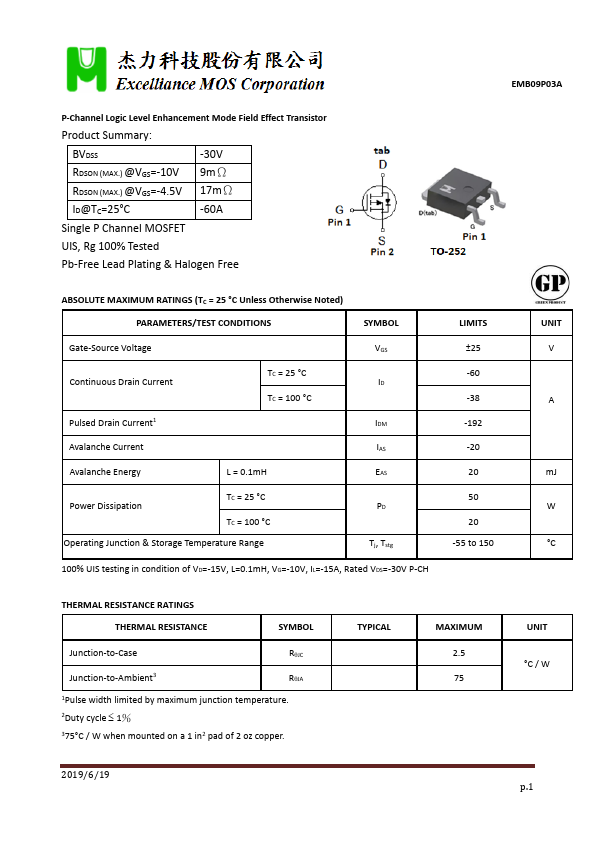

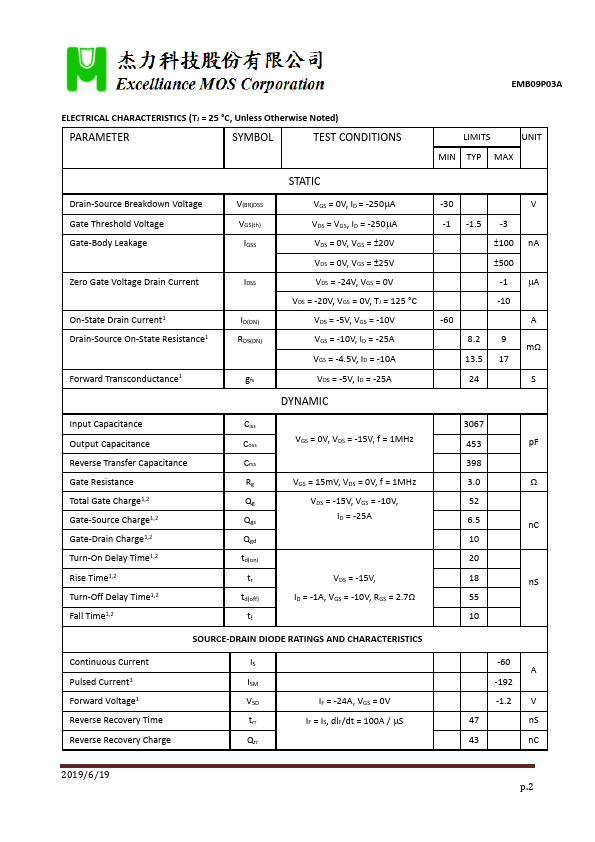

EMB09P03A P-Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS -30V RDSON (MAX.) @VGS=-10V RDSON (MAX.) @VGS=-4.5V 9mΩ 17mΩ ID@TC=25°C -60A Single P Channel MOSFET UIS, Rg 100% Tested Pb-Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate-Source Voltage VGS Continuous Drain Current Pulsed Drain Current1 TC = 25 °C ID TC = 100 °C IDM Avalanche Current IAS Avalanche Energy L = 0.1mH EAS Power Dissipation TC = 25 °C TC = 100 °C Operating Junction & Storage Temperature Range PD Tj, Tstg 100% UIS testing in condition of VD=-15V, L=0.
