EM5210

The EM5210 is 2A Single Load Switch designed by Excelliance MOS.

Product Overview

Excelliance MOS

Datasheet Details

Part number	EM5210
Manufacturer	Excelliance MOS
File Size	546.92 KB
Description	2A Single Load Switch
Datasheet	EM5210-ExcellianceMOS.pdf

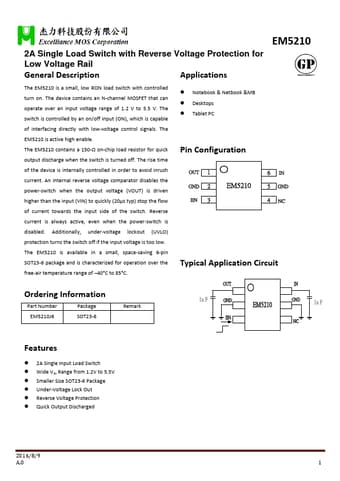

Additional preview pages of the EM5210 datasheet.

Product details

Description

Applications EM5210 The EM5210 is a small, low RON load switch with controlled turn on.The device contains an N-channel MOSFET that can operate over an input voltage range of 1.2 V to 5.5 V.The switch is controlled by an on/off input (ON), which is capable Notebook & Netbook &MB Desktops Tablet PC of interfacing directly with low-voltage control signals.The EM5210 is active high enable.The EM5210 contains a 150-Ω on-chip load resistor for quick Pin Configuration out

Features

2A Single Input Load Switch.
Wide VIN Range from 1.2V to 5.5V.
Smaller Size SOT23-6 Package.
Under-Voltage Lock Out.
Reverse Voltage Protection.
Quick Output Discharged 2016/8/9 A.0 1 Pin Assignment EM5210 Pin Name Pin No. Pin Function GND 2,5 Ground. Input Voltage. This is the drain input to the power device that supplies current to IN 6 the output pin. Minimum 0.1uF low ESR ceramic capacitor is recommended at this pin. EN 3 Chip Enable Input (Activ.
