XR16V2651 - HIGH PERFORMANCE DUART

Exar Corporation

📥 Download Datasheet

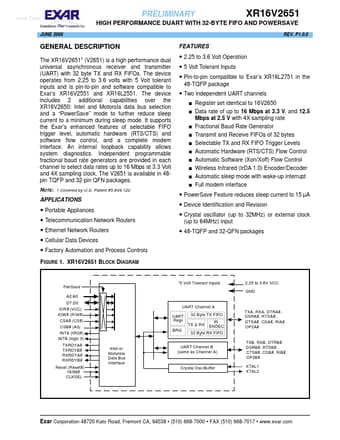

XR16V2651 Datasheet Preview — Preview of XR16V2651 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XR16V2651
Manufacturer	Exar Corporation
File Size	578.83 KB
Description	HIGH PERFORMANCE DUART
Datasheet	XR16V2651_ExarCorporation.pdf

XR16V2651 Product details

Description

The XR16V26511 (V2651) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 byte TX and RX FIFOs.

Features

of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. An internal loopback capability allows system diagnostics. Independent programmable fractional baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt and 4X sampling clock. The V2651 is available in 48pin TQFP and 32-pin QFN packages. NOTE: 1 Covered by U. S. Patent #5,649,122.
