XR16V2551 - HIGH PERFORMANCE DUART

Exar Corporation

📥 Download Datasheet

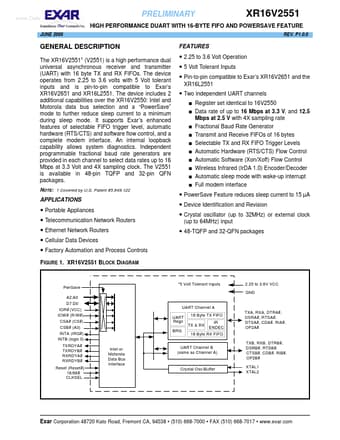

XR16V2551 Datasheet Preview — Preview of XR16V2551 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XR16V2551
Manufacturer	Exar Corporation
File Size	582.30 KB
Description	HIGH PERFORMANCE DUART
Datasheet	XR16V2551_ExarCorporation.pdf

XR16V2551 Product details

Description

The XR16V25511 (V2551) is a high performance dual universal asynchronous receiver and transmitter (UART) with 16 byte TX and RX FIFOs.

Features

of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. An internal loopback capability allows system diagnostics. Independent programmable fractional baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt and 4X sampling clock. The V2551 is available in 48-pin TQFP and 32-pin QFN packages. NOTE: 1 Covered by U. S. Patent #5,649,122.
