EM564166 - 256K x 16 Low Power SRAM

Etron Technology Inc.

The EM564166 by Etron Technology Inc. is a 256K x 16 Low Power SRAM. Below is the official datasheet preview.

📥 Download Datasheet

EM564166 256K x 16 Low Power SRAM by Etron Technology Inc. - Datasheet Preview — Official preview page of the **EM564166** 256K x 16 Low Power SRAM datasheet (Etron Technology Inc.).

Datasheet Details

Part number	EM564166
Manufacturer	Etron Technology Inc.
File Size	158.49 KB
Description	256K x 16 Low Power SRAM
Datasheet	EM564166_EtronTechnologyInc..pdf

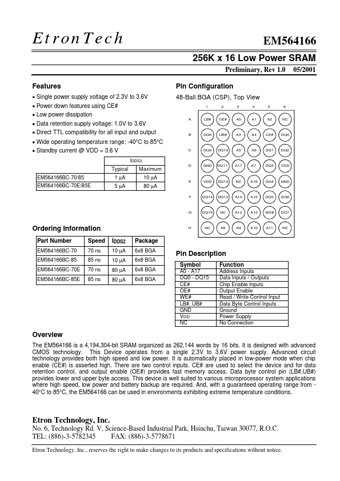

Additional preview pages of the EM564166 datasheet.

EM564166 Product details

Description

Symbol A0 - A17 DQ0 - DQ15 CE# OE# WE# LB#, UB# GND VDD NC Function Address Inputs Data Inputs / Outputs Chip Enable Inputs Output Enable Read / Write Control Input Data Byte Control Inputs Ground Power Supply No Connection Overview The EM564166 is a 4,194,304-bit SRAM organized as 262,144 words by 16 bits.It is designed with advanced CMOS technology.This Device operates from a single 2.3V to 3.6V power supply.Advanced circuit technology provides both high speed and low power.It is automat

Features

Single power supply voltage of 2.3V to 3.6V.
Power down features using CE#.
Low power dissipation.
Data retention supply voltage: 1.0V to 3.6V.
Direct TTL compatibility for all input and output.
Wide operating temperature range: -40°C to 85°C.
Standby current @ VDD = 3.6 V IDDS2 Typical EM564166BC-70/85 EM564166BC-70E/85E 1 µA 5 µA Maximum 10 µA 80 µA D GND DQ11 A17 A7 EM564166 256K x 16 Low Power SRAM Preliminary, Rev 1.0 Pin Conf.
