SM850C, SM820C - Schottky Barrier Rectifiers

Name: SM850C
SKU: SM850C-1588457

Eris

The SM850C by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SM850C, SM820C
Manufacturer	Eris
File Size	324.54 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM820C-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM850C, SM820C. Please refer to the document for exact specifications by model.

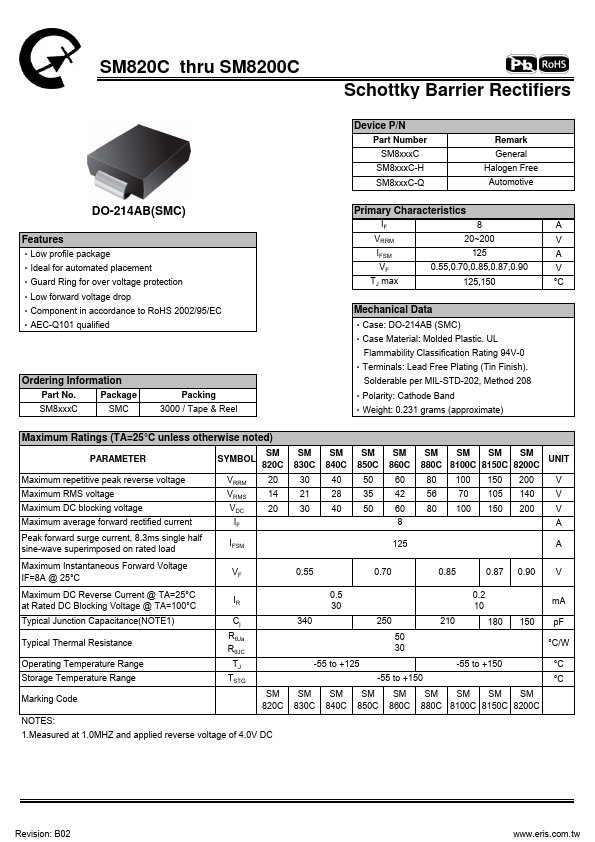

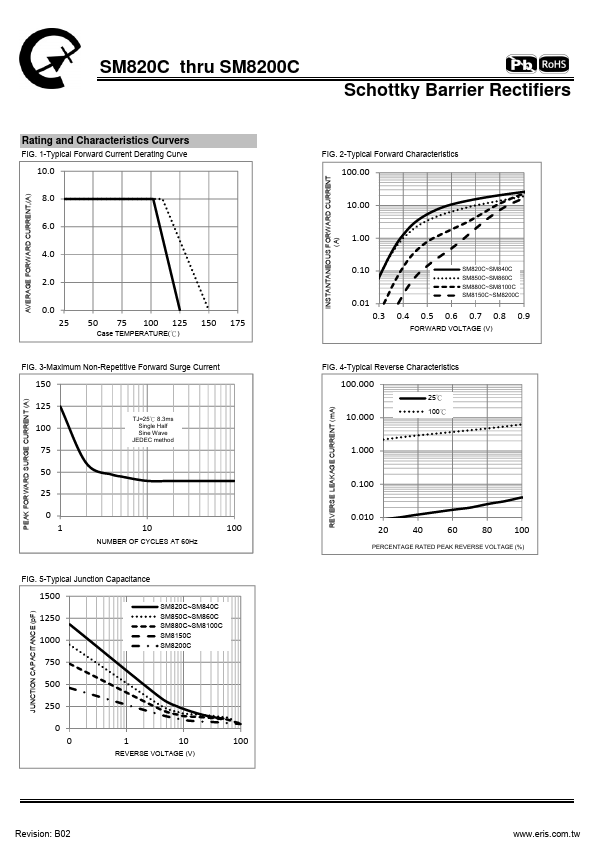

Additional preview pages of the SM850C datasheet.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part No. SM8xxxC Package SMC Packing 3000 / Tape & Reel Primary Characteristics IF 8 A VRRM 20~200 V IFSM 125 A VF 0.55,0.70,0.85,0.87,0.90 V TJ max 125,150 °C Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧T.
