SM850B, SM820B - Schottky Barrier Rectifiers

Name: SM850B
SKU: SM850B-1588375

Eris

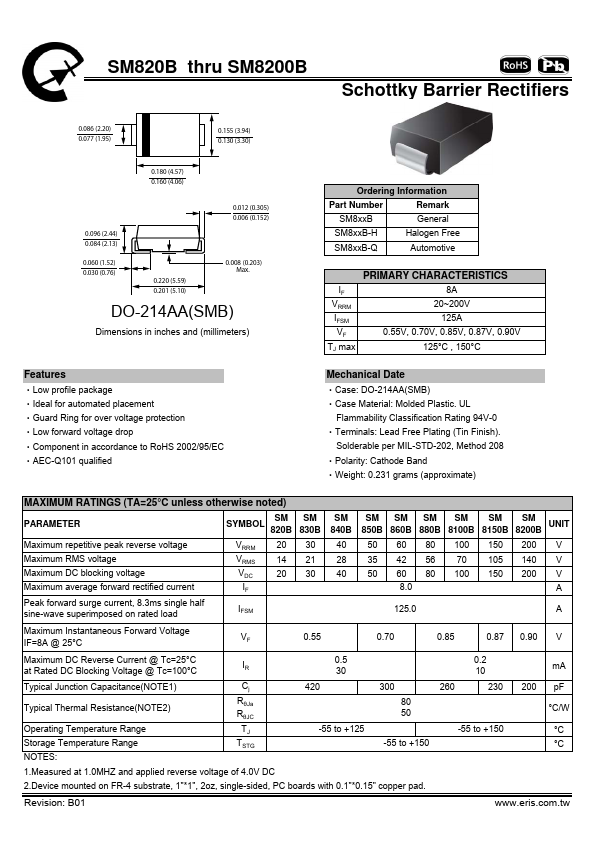

The SM850B by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SM850B, SM820B
Manufacturer	Eris
File Size	198.96 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM820B-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM850B, SM820B. Please refer to the document for exact specifications by model.

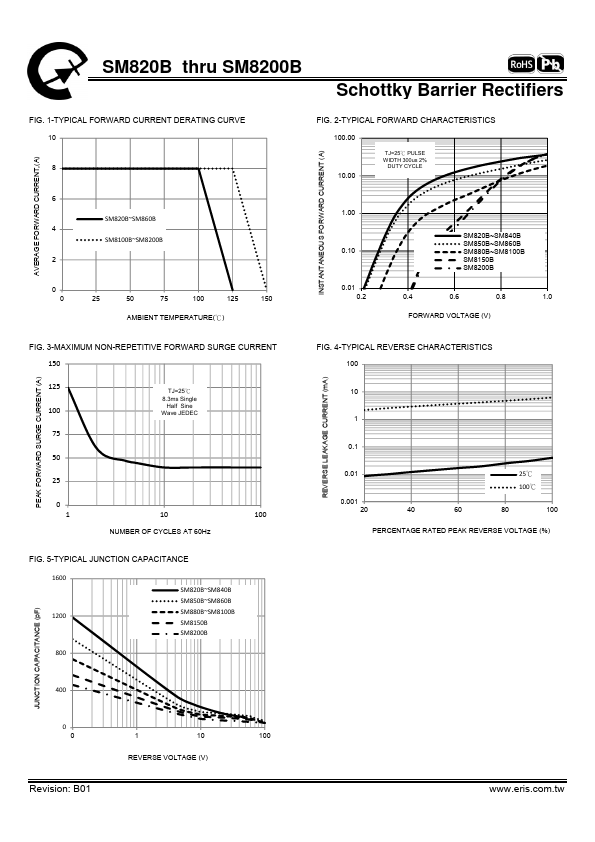

Additional preview pages of the SM850B datasheet.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate).
