SM8100B, SM820B - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

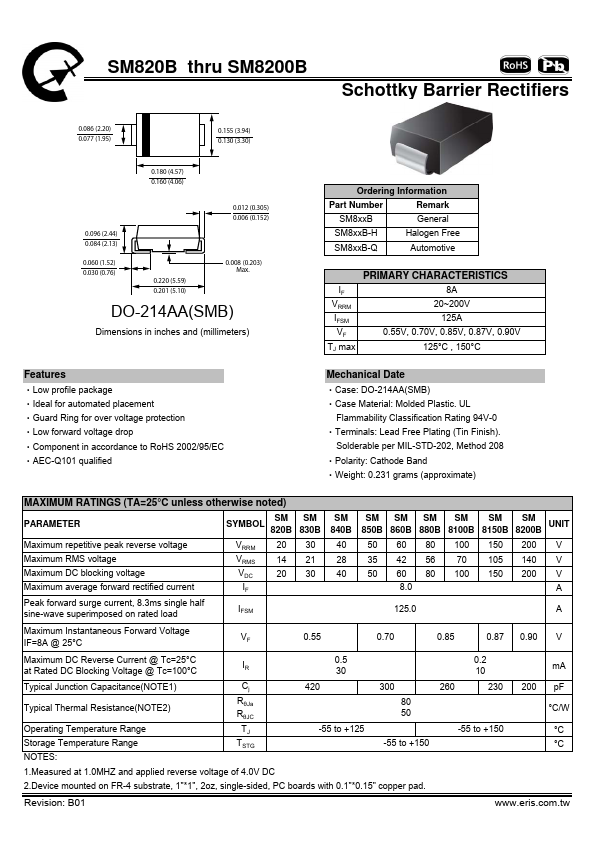

SM8100B Datasheet Preview — This datasheet PDF includes multiple part numbers: SM8100B, SM820B. Please refer to the document for exact specifications by model.

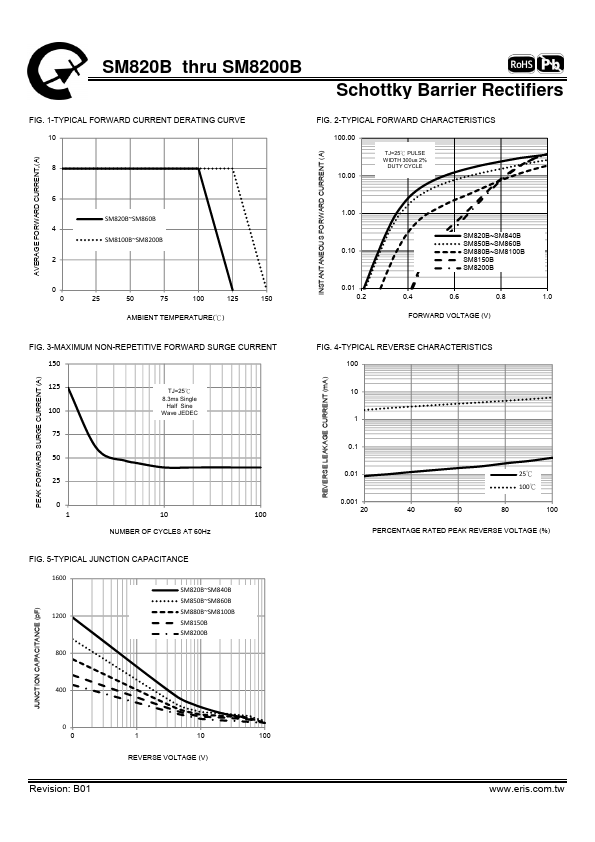

datasheet Preview Page 2

Datasheet Details

Part number	SM8100B, SM820B
Manufacturer	Eris
File Size	198.96 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM820B-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM8100B, SM820B. Please refer to the document for exact specifications by model.

SM8100B Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate).
