SM820B - Schottky Barrier Rectifiers

Eris

📥 Download Datasheet

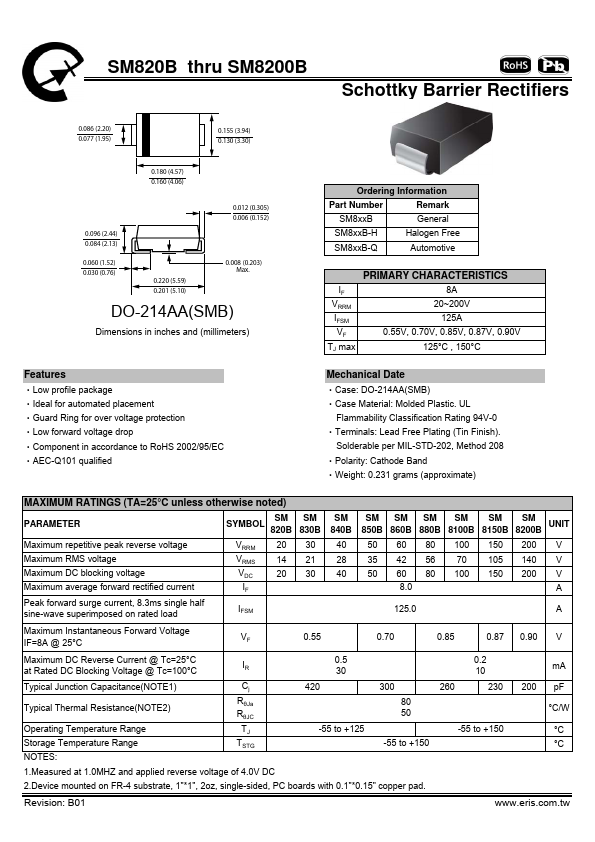

SM820B Datasheet Preview — Preview of SM820B PDF

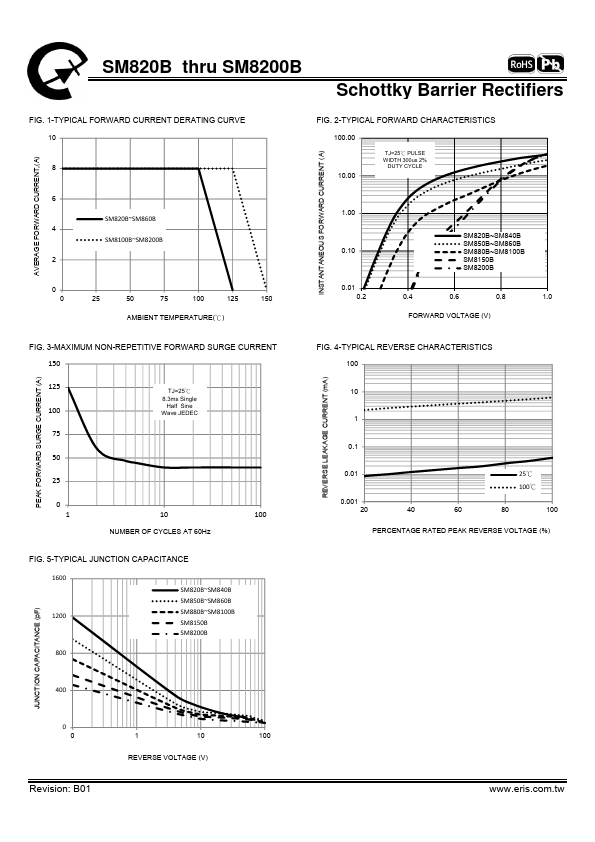

datasheet Preview Page 2

Datasheet Details

Part number	SM820B
Manufacturer	Eris
File Size	198.96 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM820B-Eris.pdf

SM820B Product details

Features

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate).
