SM320AF - Schottky Barrier Rectifiers

Datasheet Details

Part number	SM320AF
Manufacturer	Eris
File Size	193.85 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM320AF-Eris.pdf

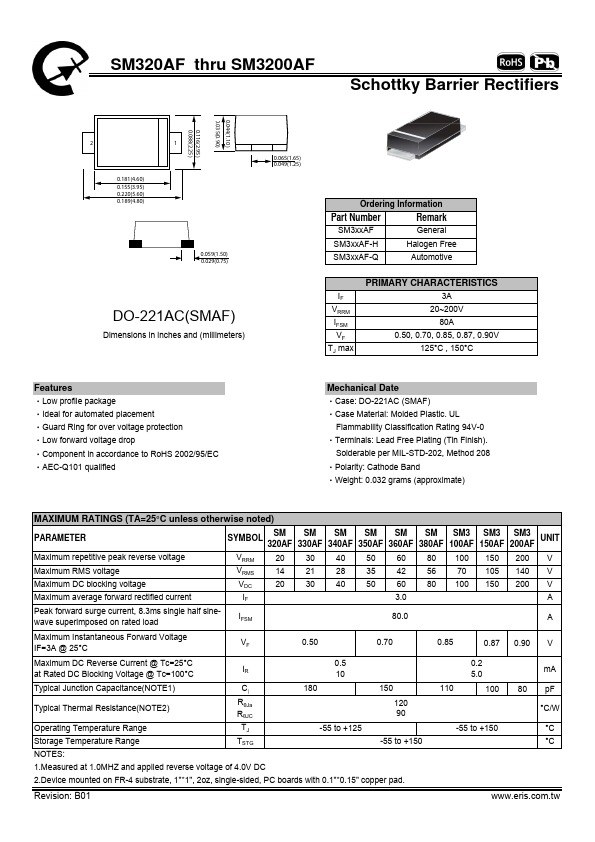

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-221AC (SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.032 grams (approximate).
