SM3200A, SM320A - Schottky Barrier Rectifiers

Name: SM3200A
SKU: SM3200A-1315766

Eris

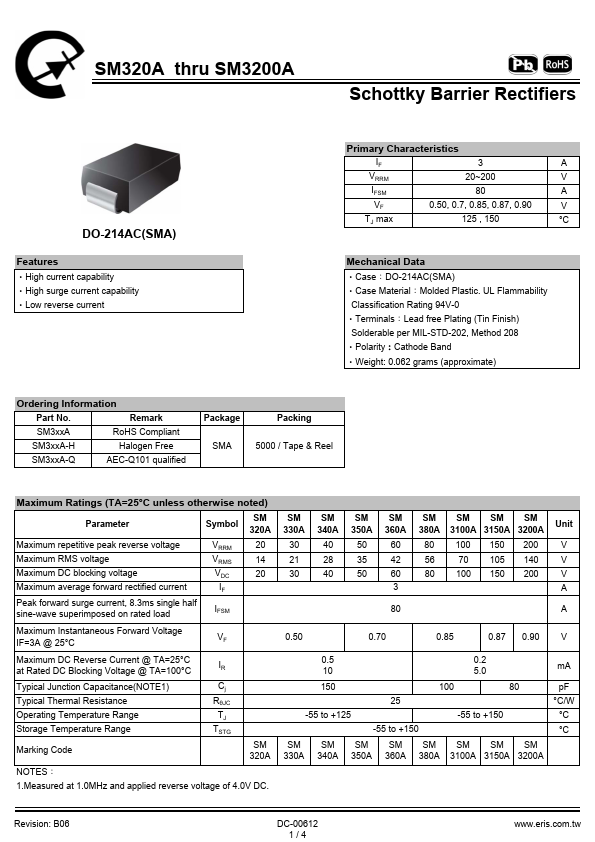

The SM3200A by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SM3200A, SM320A
Manufacturer	Eris
File Size	348.30 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM320A-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM3200A, SM320A. Please refer to the document for exact specifications by model.

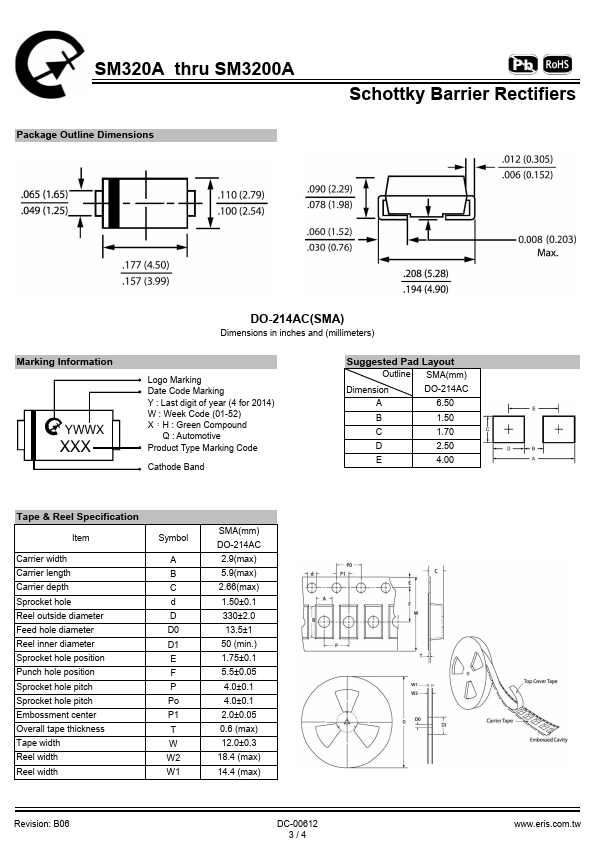

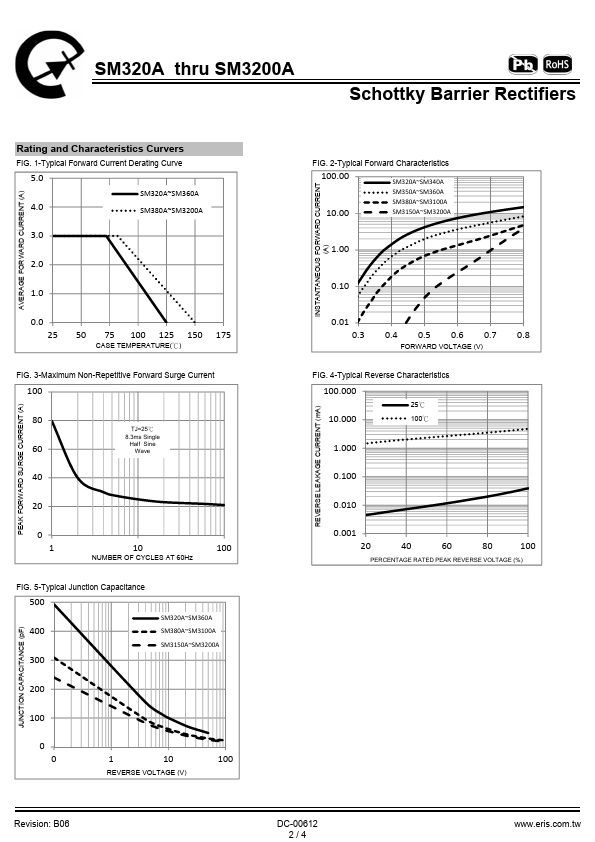

Additional preview pages of the SM3200A datasheet.

‧High current capability ‧High surge current capability ‧Low reverse current Primary Characteristics IF 3 A VRRM 20~200 V IFSM 80 A VF 0.50, 0.7, 0.85, 0.87, 0.90 V TJ max 125 , 150 °C Mechanical Data ‧Case：DO-214AC(SMA) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight: 0.062 grams (approximate) Ordering Information Part No. Remark SM3xxA.
