SM3200AF, SM320AF - Schottky Barrier Rectifiers

Name: SM3200AF
SKU: SM3200AF-1588071

Eris

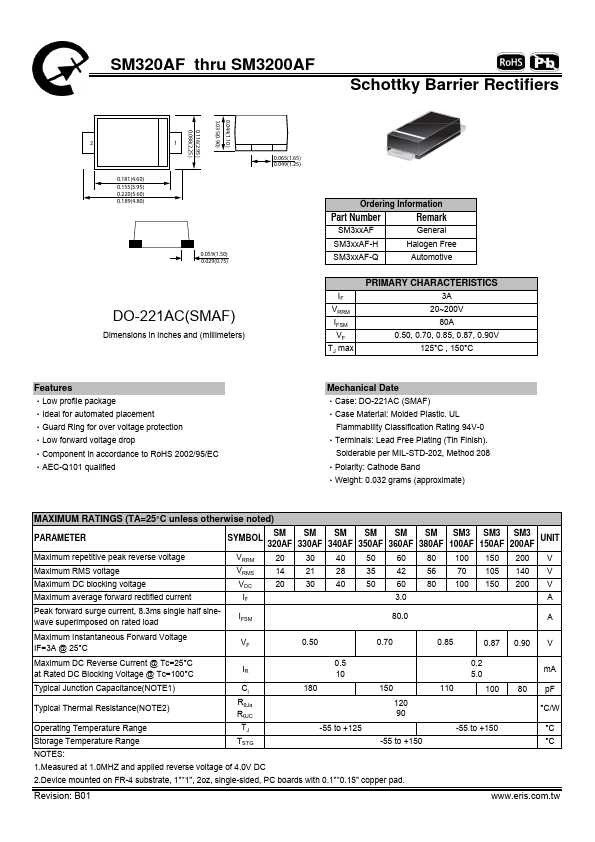

The SM3200AF by Eris is a Schottky Barrier Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SM3200AF, SM320AF
Manufacturer	Eris
File Size	193.85 KB
Description	Schottky Barrier Rectifiers
Datasheet	SM320AF-Eris.pdf
Note	This datasheet PDF includes multiple part numbers: SM3200AF, SM320AF. Please refer to the document for exact specifications by model.

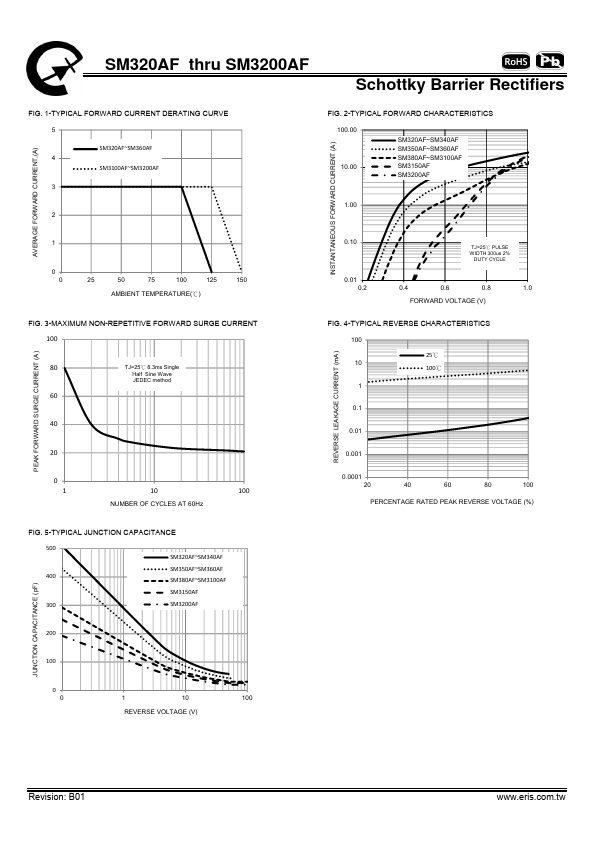

Additional preview pages of the SM3200AF datasheet.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-221AC (SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.032 grams (approximate).
