EBRT3L200D - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT3L200D
Manufacturer	Eris
File Size	199.28 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT3L200D Datasheet

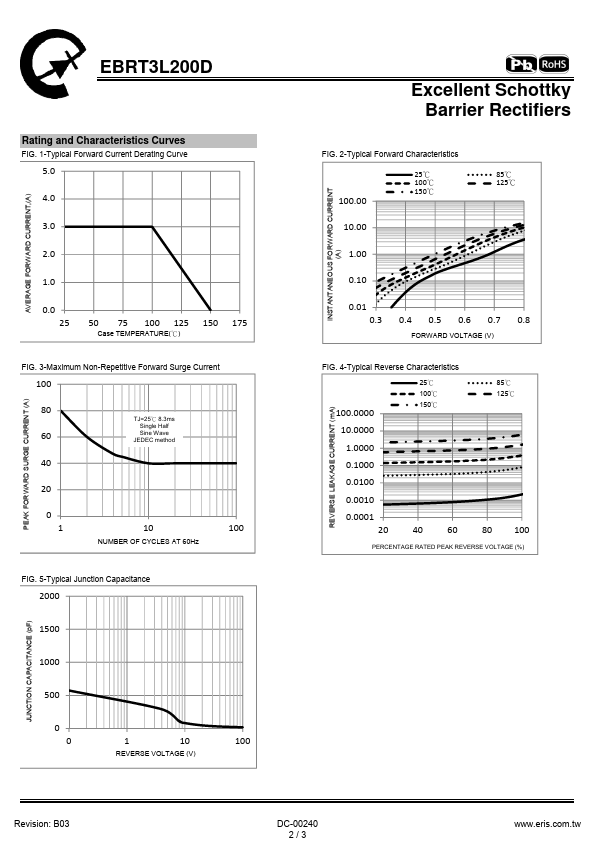

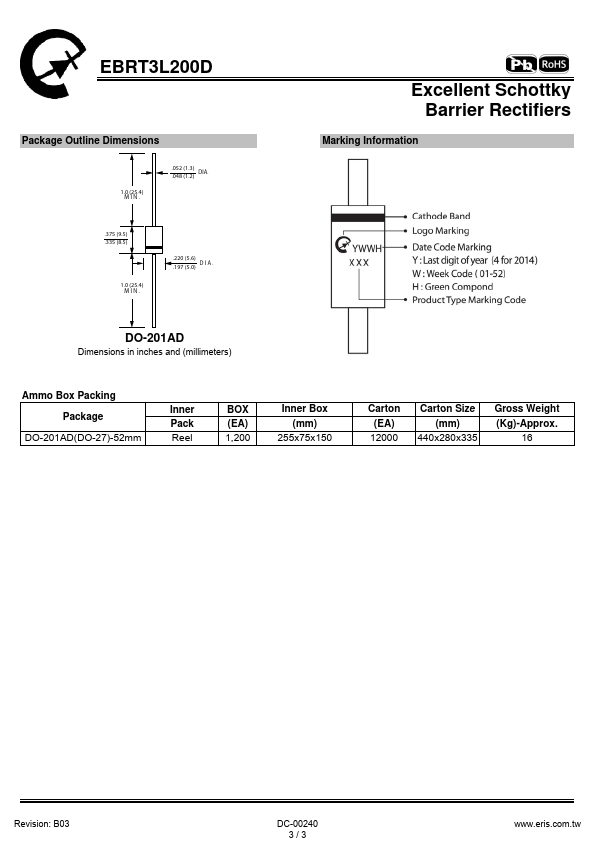

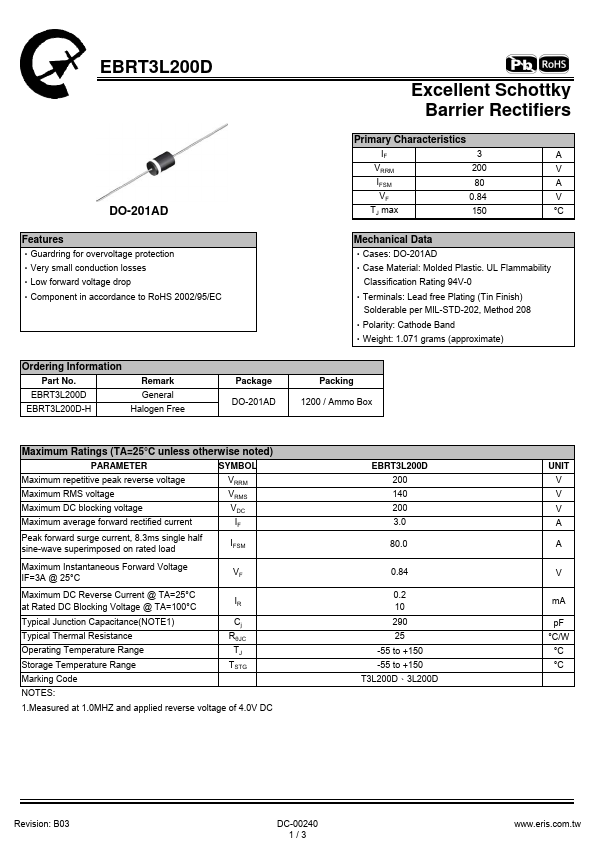

Additional preview pages of the EBRT3L200D datasheet.

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Ordering Information Part No. Remark EBRT3L200D General EBRT3L200D-H Halogen Free Package DO-201AD Excellent Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 200 V IFSM 80 A VF 0.84 V TJ max 150 °C Mechanical Data ‧Cases: DO-201AD ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Le.
