EBRT3H45S - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT3H45S
Manufacturer	Eris
File Size	180.25 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT3H45S Datasheet

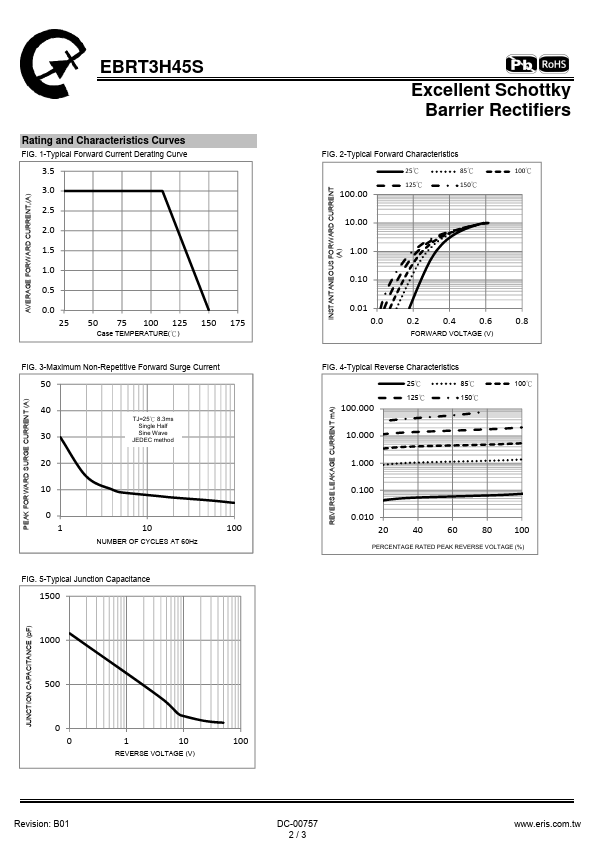

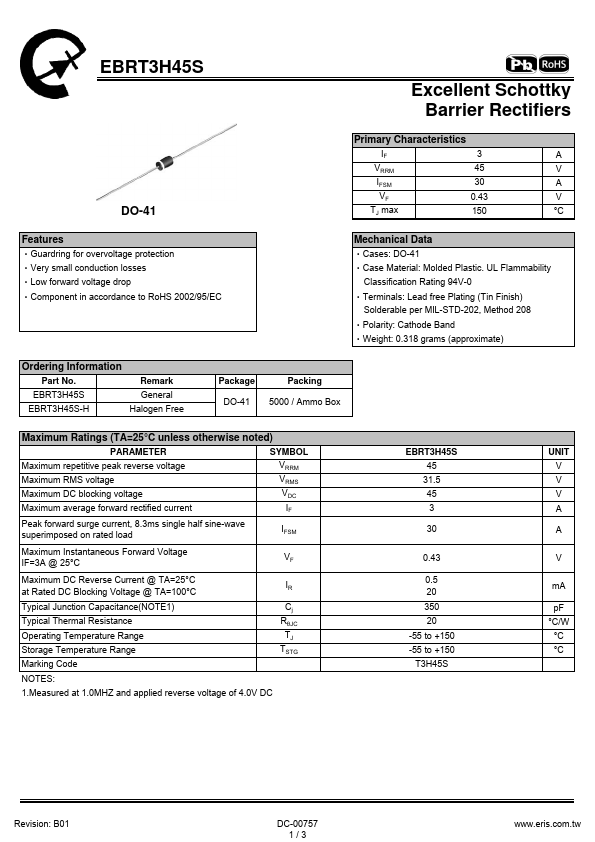

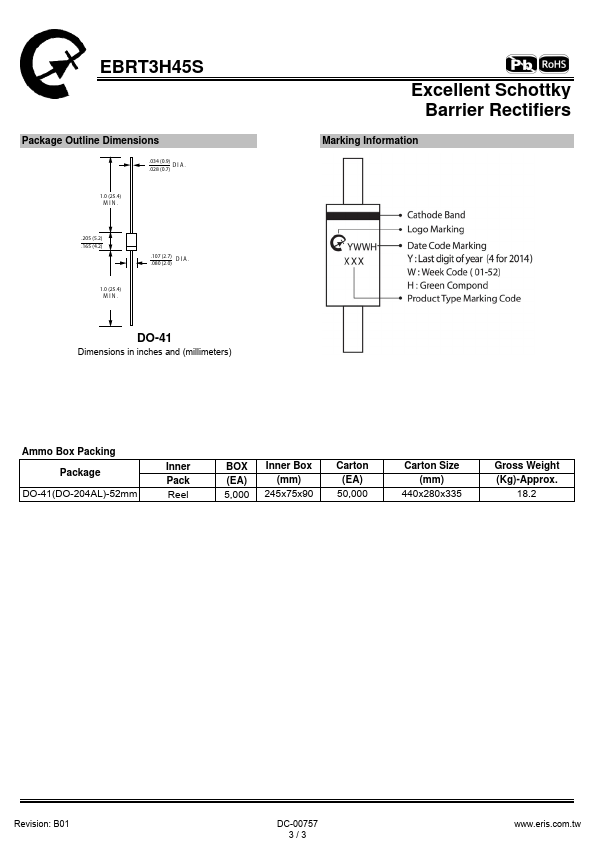

Additional preview pages of the EBRT3H45S datasheet.

‧Guardring for overvoltage protection ‧Very small conduction losses ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (approximate) Ordering Information Part No. Remark EBRT3H45S General EBRT3H45S-H Halogen Free Package DO-41 Packing 500.
