EBRP10X300CT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRP10X300CT
Manufacturer	Eris
File Size	225.13 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP10X300CT Datasheet

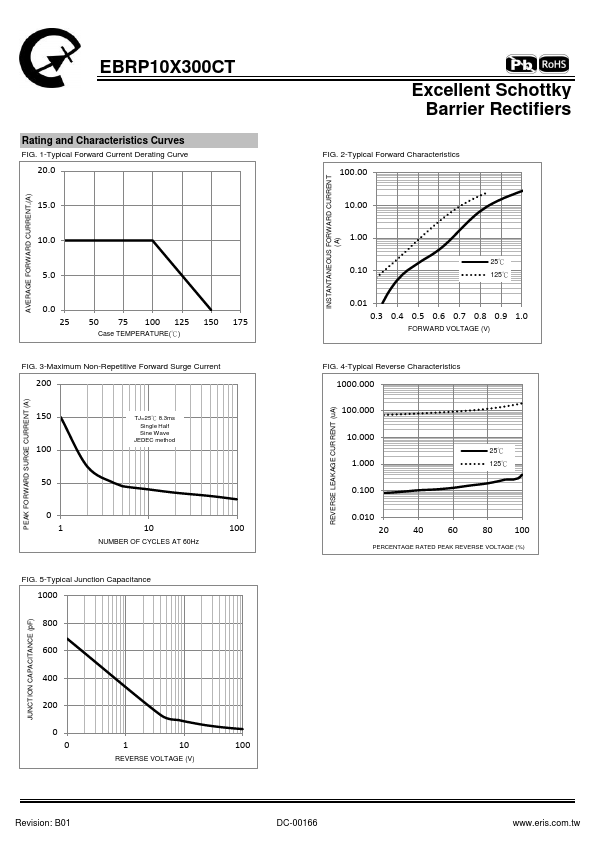

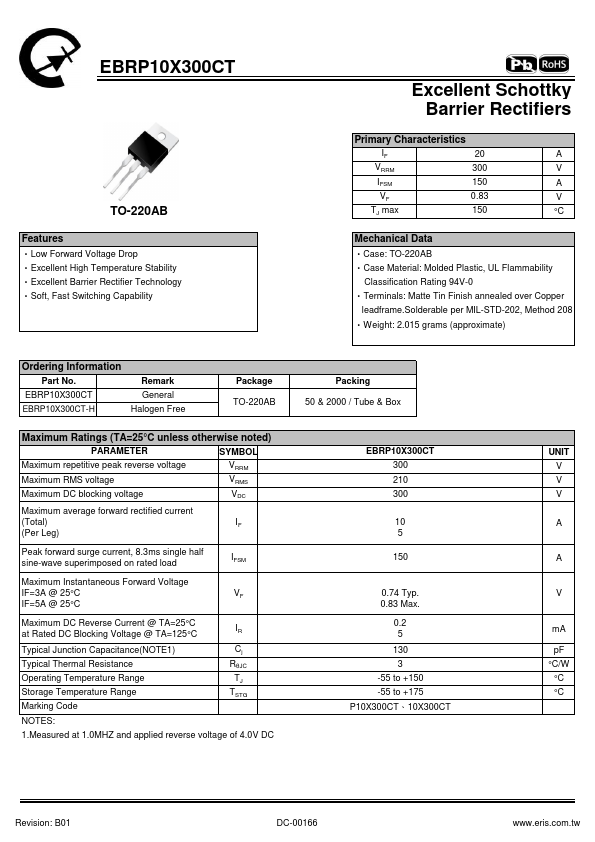

Additional preview pages of the EBRP10X300CT datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 20 A VRRM 300 V IFSM 150 A VF 0.83 V TJ max 150 °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 2.015 grams (.
