EN25QE16A - 16 Megabit 3V Serial Flash Memory

Product Overview

Eon Silicon Solution

📥 Download Datasheet

EN25QE16A 16 Megabit 3V Serial Flash Memory by Eon Silicon Solution - Datasheet Preview — Datasheet preview – EN25QE16A

Datasheet Details

Part number	EN25QE16A
Manufacturer	Eon Silicon Solution
File Size	1.65 MB
Description	16 Megabit 3V Serial Flash Memory
Datasheet	EN25QE16A Datasheet
Additional preview pages of the EN25QE16A datasheet.

Product details

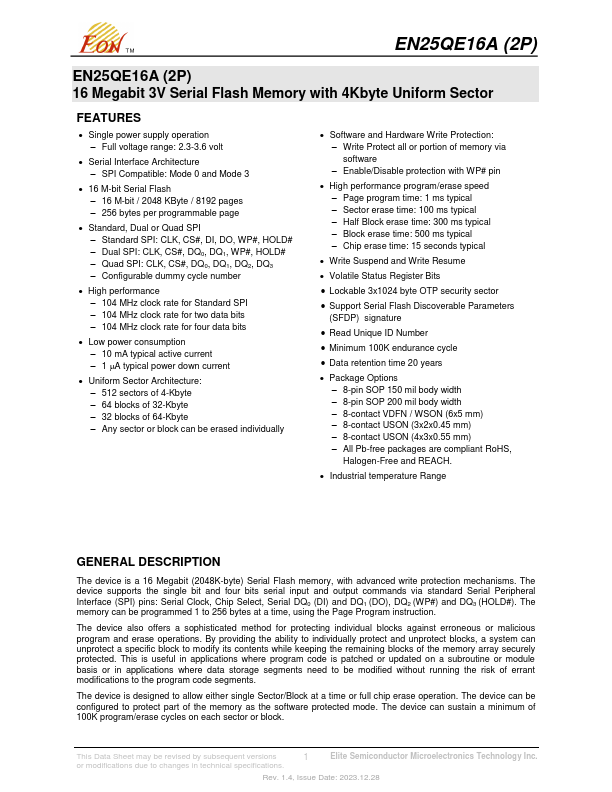

Description

The device is a 16 Megabit (2048K-byte) Serial Flash memory, with advanced write protection mechanisms.

Features

Single power supply operation.
Full voltage range: 2.3-3.6 volt.
Serial Interface Architecture.
SPI Compatible: Mode 0 and Mode 3.
16 M-bit Serial Flash.
16 M-bit / 2048 KByte / 8192 pages.
256 bytes per programmable page.
Standard, Dual or Quad SPI.

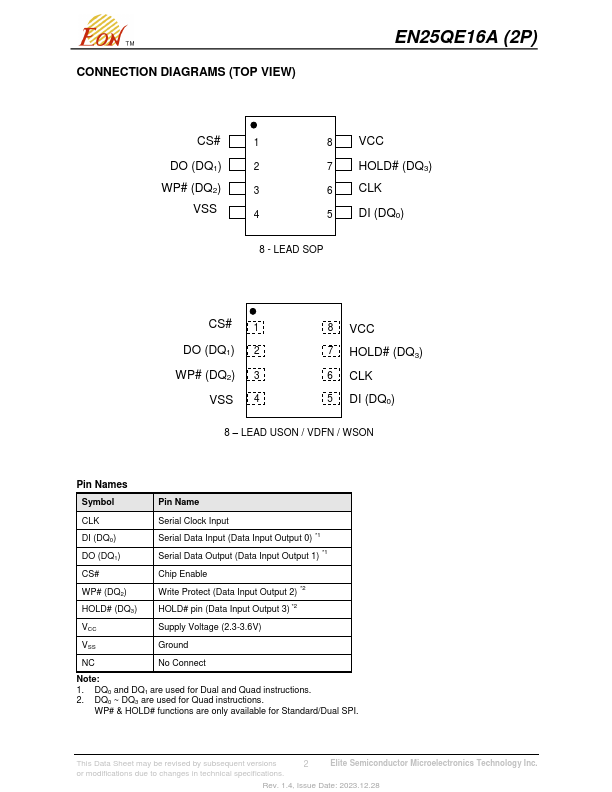

Standard SPI: CLK, CS#, DI, DO, WP#, HOLD#.
Dual SPI: CLK, CS#, DQ0, DQ1, WP#, HOLD#.
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
Configurable dummy cycle numbe.
