EN25Q80B-2C - 8 Megabit Serial Flash Memory

Eon

📥 Download Datasheet

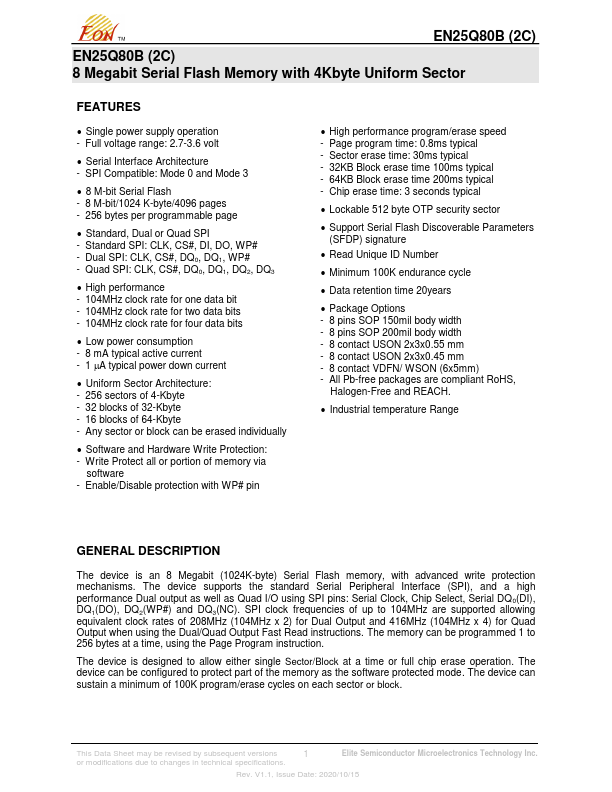

EN25Q80B-2C Datasheet Preview — Preview of EN25Q80B-2C PDF

datasheet Preview Page 2

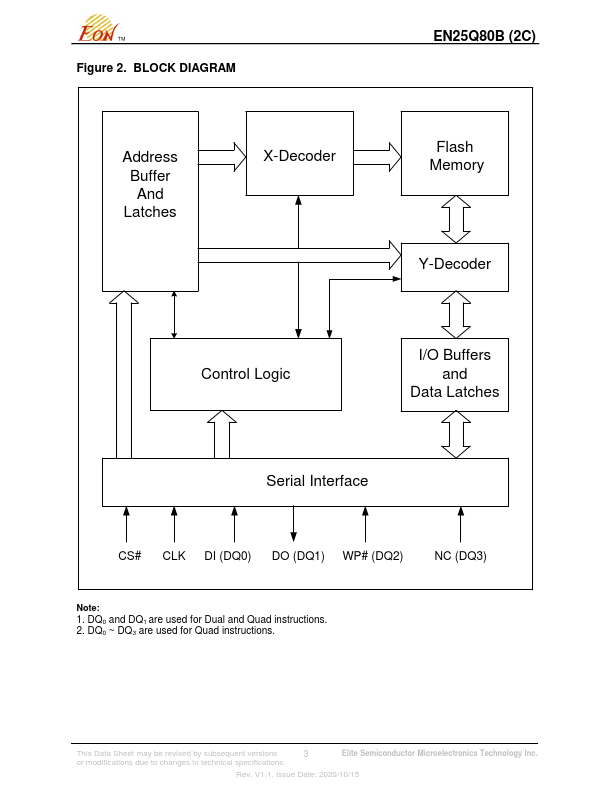

datasheet Preview Page 3

Datasheet Details

Part number	EN25Q80B-2C
Manufacturer	Eon
File Size	1.65 MB
Description	8 Megabit Serial Flash Memory
Datasheet	EN25Q80B-2C-Eon.pdf

EN25Q80B-2C Product details

Description

The device is an 8 Megabit (1024K-byte) Serial Flash memory, with advanced write protection mechanisms.

Features

Single power supply operation - Full voltage range: 2.7-3.6 volt.
Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3.
8 M-bit Serial Flash - 8 M-bit/1024 K-byte/4096 pages - 256 bytes per programmable page.
Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI, DO, WP# - Dual SPI: CLK, CS#, DQ0, DQ1, WP# - Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
High performance - 104MHz clock rate for one data bit - 104MHz clock rate for two data bits - 104MHz clock ra.
