EN25Q40A - 4 Megabit Serial Flash Memory

Eon

📥 Download Datasheet

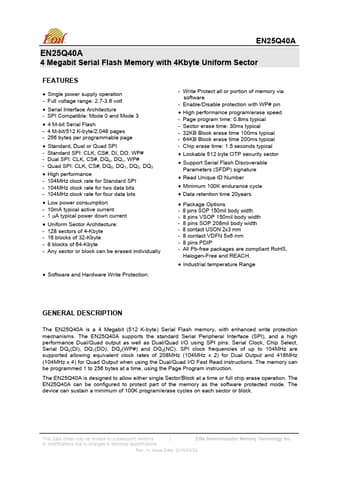

EN25Q40A Datasheet Preview — Preview of EN25Q40A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EN25Q40A
Manufacturer	Eon
File Size	1.09 MB
Description	4 Megabit Serial Flash Memory
Datasheet	EN25Q40A-Eon.pdf

EN25Q40A Product details

Features

Single power supply operation - Full voltage range: 2.7-3.6 volt.
Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3.
4 M-bit Serial Flash - 4 M-bit/512 K-byte/2,048 pages - 256 bytes per programmable page.
Standard, Dual or Quad SPI - Standard SPI: CLK, CS#, DI, DO, WP# - Dual SPI: CLK, CS#, DQ0, DQ1, WP# - Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3.
High performance - 104MHz clock rate for Standard SPI - 104MHz clock rate for two data bi.
